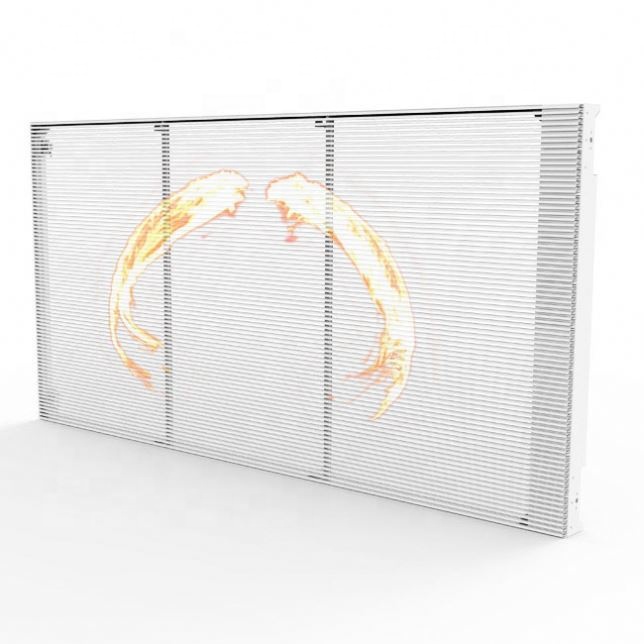

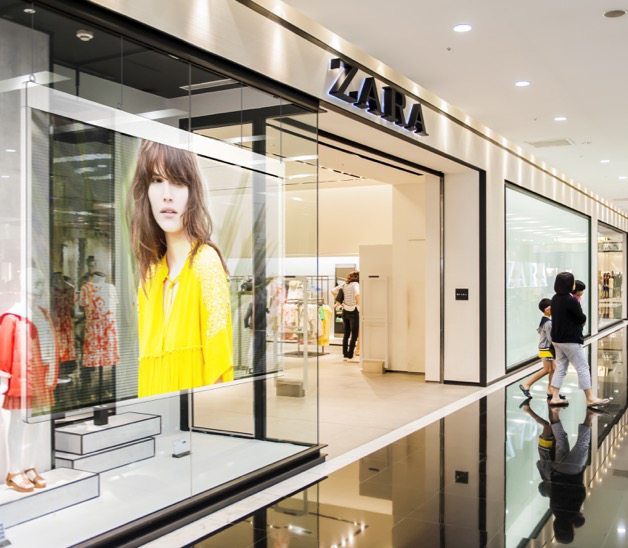

P3.9 P5.2 P7.8 P10 transparent led display for shop window

Register as member to view prices

MOQ: 1 Sets

Produce Period: 10-15 days

Supply Ability: 1000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union

INQUIRY PDF Format

Description

>>Key features:

1. Natural connection and separation, presenting a perfect space design;
2. Transparent DLED, offering our customers the strange experience and visual experience;
3. Convey the information embodied in the display product from the same perspective.

>>Specifications

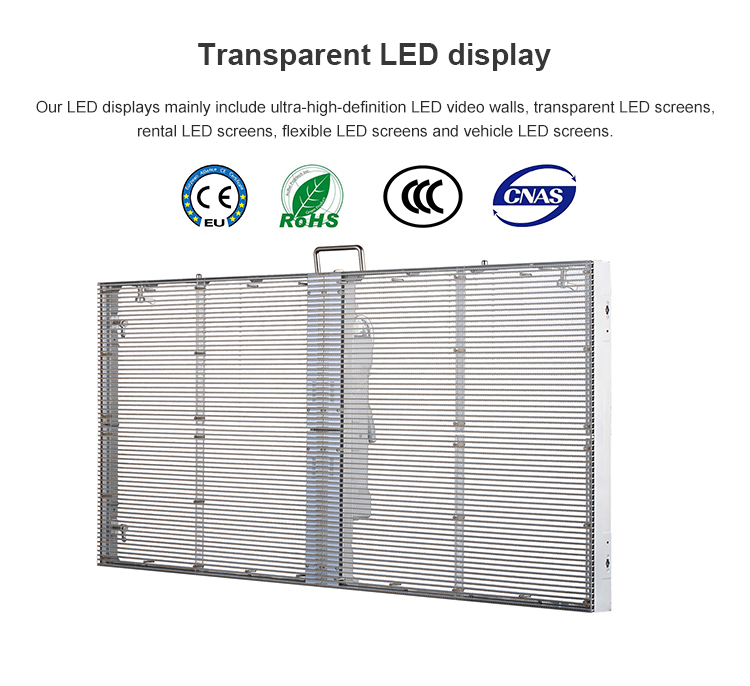

Transparent LED screen
Model NO.	P3.9	P5.2	P7.8	P10
Pixel Pitch	3.9X7.8mm	5.2X7.8mm	7.8X7.8mm	10.4X10.4mm

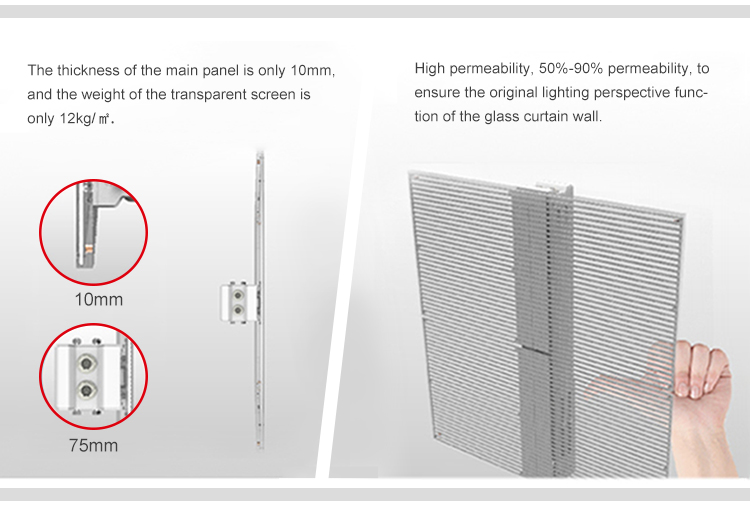

Screen transparency	＞65%	＞65%	＞65%	＞65%
LED type	SMD 1921/2020	SMD 1921/2020	SMD 1921/2020	SMD 1921/2020
Flatness between modules	<2mm	<2mm	<2mm	<2mm
Pixel configuration	1R1PG1PB	1R1PG1PB	1R1G1B	1R1G1B
Module size *(WH)**	1000*500mm	1000*500mm	1000*500mm	1000*500mm
Cabinet weight	<12kg/m²	<12kg/m²	<12kg/m²	<12kg/m²
Electrical source	mute	mute	mute	mute
Rresolution (W*H)	1920*1080mm	1920*1080mm	1920*1080mm	1920*1080mm
Density	32256dots/m²	24576dots/m²	16384dots/m²	9216dots/m²
Best viewing angle	178°/ 178°	178°/ 178°	178°/ 178°	178°/ 178°
Brightness	1000-6000cd/m²	1000-6000cd/m²	1000-6000cd/m²	1000-6000cd/m²
Working voltage	AC：380V±10% 50Hz	AC：380V±10% 50Hz	AC：380V±10% 50Hz	AC：380V±10% 50Hz
Maximum power	400-800W/ m²	400-800W/ m²	400-800W/ m²	400-800W/ m²

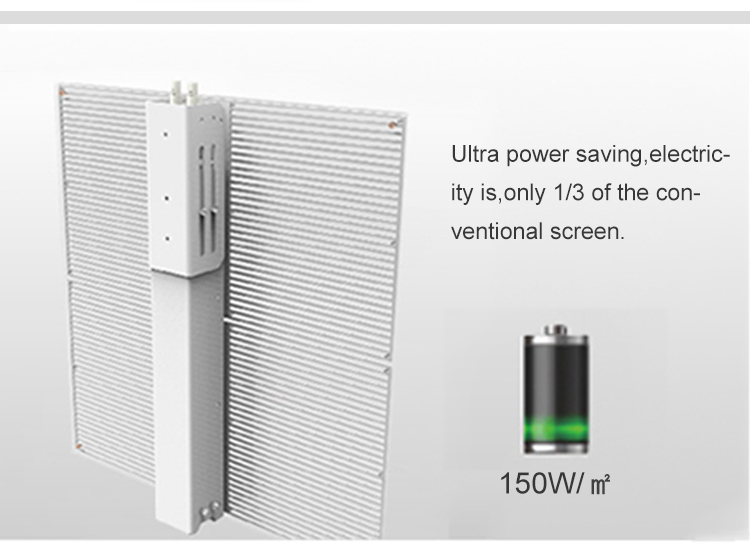

Average power consumption	180W/m² ~240W / m²	180W/m² ~240W / m²	180W/m² ~240W / m²	180W/m² ~240W / m²
Out of control points	＜0.001%	＜0.001%	＜0.001%	＜0.001%
Operation of Environmental Temperature/°C	-10℃～+45℃	-10°C~60°C	-10°C~60°C	-10°C~60°C
Operating Temperature	10%～80%RH	10%~90%RH No condensation	10%~90%RH No condensation	10%~90%RH No condensation
IP grade	＞IP22	＞IP22	＞IP22	＞IP22
Continuous working time	≥72hrs	≥72hrs	≥72hrs	≥72hrs
Lifetime	100,000hrs	100,000hrs	100,000hrs	100,000hrs

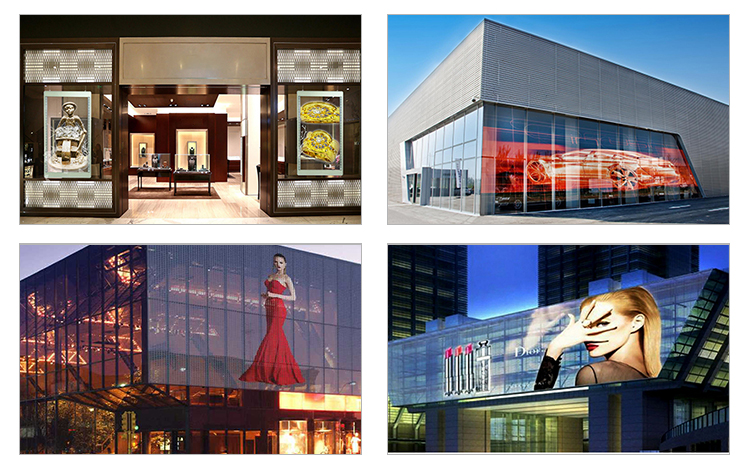

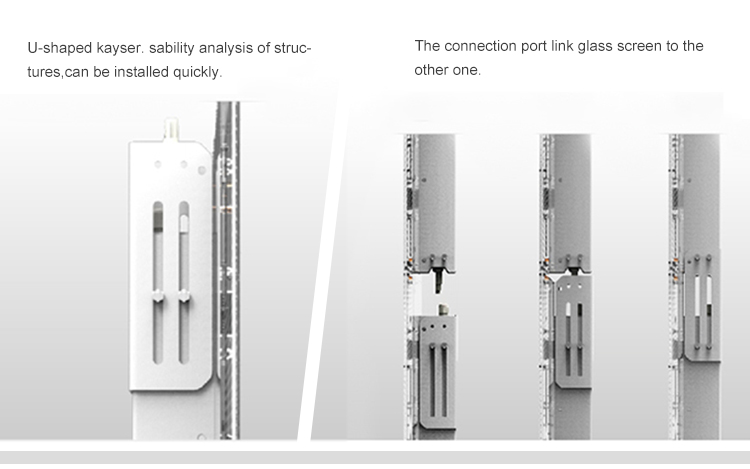

Installation method	Back Frame Installation / Hoisting / Inner Arc Installation
Pixel correction	Equipped with point - by - point brightness and chromaticity correction
Signal input	HDMI(1),DP In/Out(1),IR In(1),RJ45 In/Out(1),USB(2),RS232C In/Out(1), Audio Out(1),Internal Memory(64GB),FFC Cable(1.6 meter)
connectors	3 U gold plated
Wire and cable	National standard wire
PCB	International A material
Cabinet material	LED lamp covers are made of epoxy resin
