P0.93 P1.25 P1.56 P1.87 indoor hd led video wall for traffic management center

Register as member to view prices

MOQ: 1 Sets

Produce Period: 15-20 days

Supply Ability: 1000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union

INQUIRY PDF Format

Description

>>Key features:

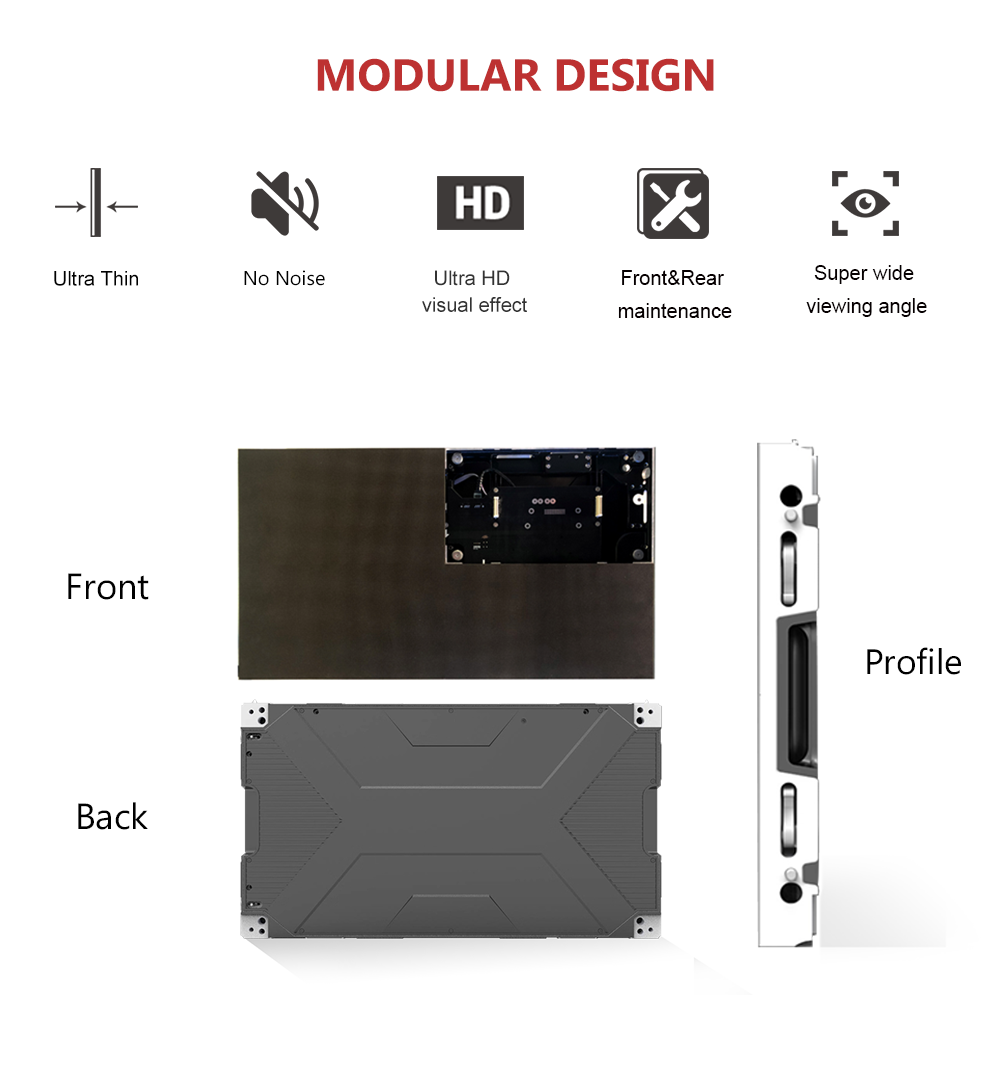

Complete front and back maintenance,high convenience design;
The cabinet is designed according to the ratio of 16:9,with 720p/1080p/2160p point-to-point splice;
Thin,;light design with less noise,supporting dual system,dual power supply and dual power backup;
High precision CNC machining,flatness is less than o.1mm,gap spacing is less than 0.1mm;
The single module adopts die-cast aluminum bottom shell,which can prevent dust at IP5X grade;
Single module supports temperature,voltage and communication lines detection,and supports module “automatic correction”.
High contrast,high refresh,high grayscale,high definition display,and ultra-high performance to meet the needs of application fields.

>>Specifications

*HD screen 600337.5 series**
Model NO.	P0.93	P1.25	P1.56	P1.87
Pixel Pitch	0.93mm	1.25mm	1.56mm	1.87mm
LED type	Mini0.9	SMD1010	SMD1010	SMD1515
Flatness between modules	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm
Pixel configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Module size *(WH)**	150*168.75mm	150*168.75mm	150*168.75mm	300*168.75mm
Module resolution (W*H)	160*180mm	120*135mm	96*108mm	80*90
*Cabinet size(WHD)*	600337.542mm	600337.542mm	600337.542mm	600337.542mm
Cabinet resolution (W*H)	640*360mm	480*270mm	384*216mm	320*180mm
Cabinet weight	6kg/pc	6kg/pc	6kg/pc	6kg/pc
Density	1137777dots/m²	640000dots/m²	409600dots/m²	284444dots/m²
scan	60S	45S	54S	45S
IC	2069	2163	2163	2163
Best viewing distance	>0.9m	>1.2m	>1.5m	>1.8m
Best viewing angle	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°
Brightness	200-800cd/m²	200-800cd/m²	200-800cd/m²	200-800cd/m²
Working voltage	AC：110-240V 50~60Hz	AC：110-240V 50~60Hz	AC：110-240 V 50~60Hz	AC：110-240V 50~60Hz
Maximum power	≤700W/ m²	≤800W/ m²	≤800W/ m²	≤800W/ m²
Average power consumption	100W/m² ~300W / m²	100W/m² ~300W / m²	100W/m² ~300W / m²	100W/m² ~300W / m²
Screen temperature rise(running state)	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees
Operation of Environmental Temperature/°C	-10°C~60°C	-10°C~60°C	-10°C~60°C	-10°C~60°C
Operating Temperature	10%~90%RH No condensation	10%~90%RH No condensation	10%~90%RH No condensation	10%~90%RH No condensation
Screen color temperature	2000K～9500K	2000K～9500K	2000K～9500K	2000K～9500K
Driving method	1/30 scanning	1/30 scanning	1/32 scanning	1/32 scanning
Gray scale	18 bits	18 bits	18 bits	18 bits
Refresh frequency	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
IP grade	Front:IP35 Back:IP35	Front:IP43 Back:IP35	Front:IP45 Back:IP45	Front:IP35 Back:IP35
Continuous working time	≥7×24hrs	≥7×24hrs	≥7×24hrs	≥7×24hrs
Lifetime	100,000hrs	100,000hrs	100,000hrs	100,000hrs
Installation method	Back Frame Installation / Hoisting / Inner Arc Installation
Pixel correction	Equipped with point - by - point brightness and chromaticity correction
Control mode	Synchronization control
Control distance	Super five double stranded network cable, more than 100 meters using optical fiber transmission
Software interface	Windows XP /7/8/10
Signal input	HDMI、DVI（Extensible interface）
Cabinet material	Die-casting Alu

*All technical specification, designs and photos subject to change without notice

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
