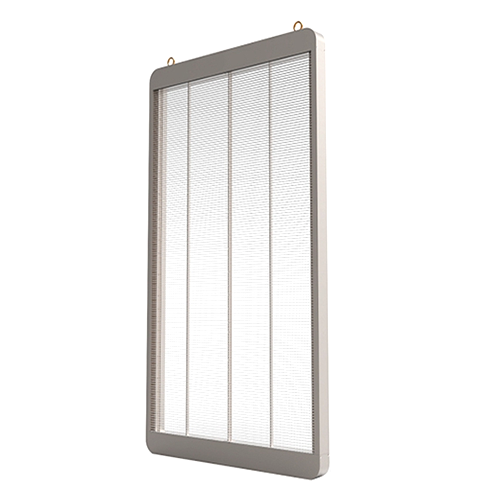

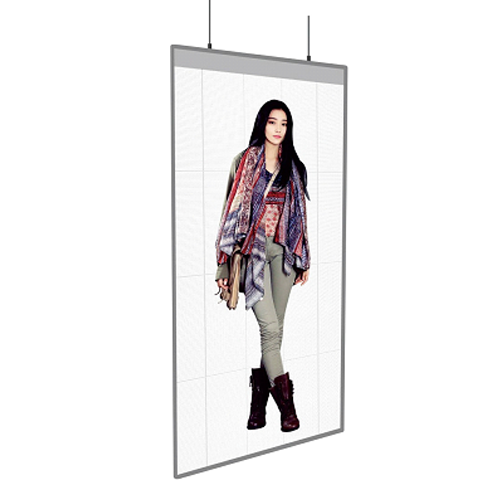

P1.73 P2 Ceiling mount Transparent LED display screen

Register as member to view prices

MOQ: 1 Sets

Produce Period: 10-15 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

>>Key features:

1. Natural connection and separation, presenting a perfect space design;
2. Transparent DLED, offering our customers the strange experience and visual experience;
3. Convey the information embodied in the display product from the same perspective.

>>Specifications

Model	P1.73-4.8	P2-4.8	P3.4-6.9
Pixel pitch	1.73X4.81	2.08x4.81	3.47x6.94
Lamps	1415	1415	1921
chip composition	1R1G1B	1R1G1B	1R1G1B
Solder craft	Side mounted ,positive-glowing	Side mounted ,positive-glowing	Side mounted ,positive-glowing
PiexIs/m2	147968dot/m2	99840dot/m2	41472dot/m2
Screen points	578X416dot	480x416dot	288x288dot
Driving mode	Constant current driving	Constant current driving	Constant current driving
Cabinet size	1000X2000mm	1000X2000mm	1000X2000mm
Material of cabinet	Profile +PC buckle	Profile +PC buckle	Profile +PC buckle
Weight/m2	< 10KG/m2	< 10KG/m2	< 10KG/m2
Brightness/m2	1000 -6000CD/m2	1000 -6000CD/m2	1000 -6000CD/m2
Max consumption/m2	<800W/m2	<800W/m2	<800W/m2
Control system	Colorlight /Novastar	Colorlight /Novastar	Colorlight /Novastar
Refresh rate	≥3840 Hz	≥3840 Hz	≥3840 Hz
Gray scale	≥ 14bit	≥ 14bit	≥ 14bit
Size customization	Support resolution customized	Support resolution customized	Support resolution customized
Transparency rate	≥70%	≥75%	≥77%
Working voltage	DC5V	DC5V	DC5V
Power supply cooling metho	Self-cooling + aluminum profi	Self-cooling + aluminum profi	Self-cooling + aluminum profi
Input voltage rage	AC 100V -230V	AC 100V -230V	AC 100V -230V
Protection level	IP30	IP30	IP30

*All technical specification, designs and photos subject to change without notice
