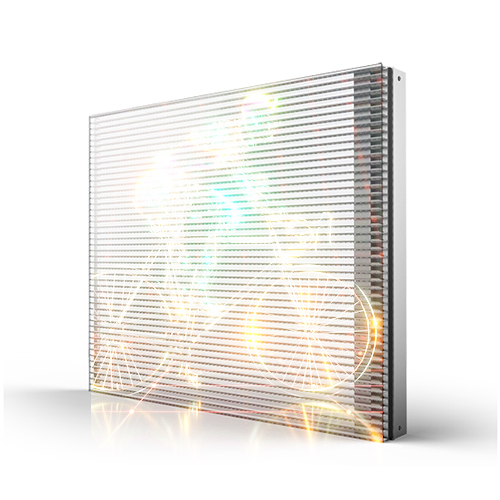

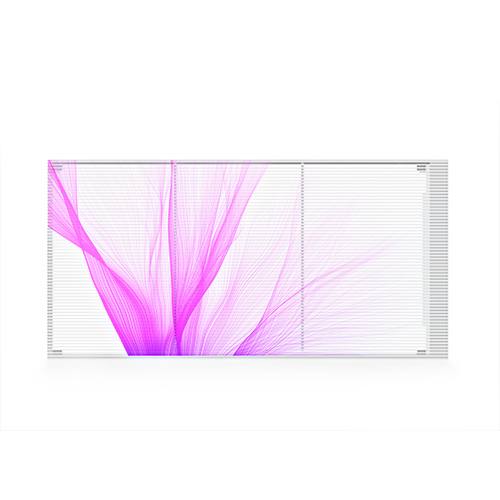

P4 P8 P10 Adhesive LED Screen

Register as member to view prices

MOQ: 1 Sets

Produce Period: 10-15 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

>>Key features:

1. Natural connection and separation, presenting a perfect space design;
2. Transparent DLED, offering our customers the strange experience and visual experience;
3. Convey the information embodied in the display product from the same perspective.

>>Specifications

Model	P4-8	P6-6	P10-10	P16-16	P20-20	P40-40
Module Size(mm)	480x256	480x192	480x320	480x192	960x320	960x480
Transparency	60%	55%	70%	75%	85%	90%
Pixel Density(dotlm2)	31250	27778	10000	3906	2500	1250
Cabinet Weight(kg/m2)	1~3	1~3	1~3	1~3	1~3	1~3
Pixel Pitch(mm)	4*8	6*6	10*10	16*16	20*20	40*40
Leds	Customized	Customized	Customized	Customized	Customized	Customized
Brightness(cd/m2}	4500	4500	4500	4000	4000	4000
Viewing Angle	160	160	160	160	160	160
Refresh Frequency(hz)	＞1920	＞1920	＞1920	＞1920	＞1920	＞1920
(Ave/Max) Consumption (w/m2),	420-850	420-850	350-800	300-600	200-600	100-300
Scanning	Static	Static	Static	Static	Static	Static
Control System	Colorlight	Colorlight	Colorlight	Colorlight	Colorlight	Colorlight

*All technical specification, designs and photos subject to change without notice

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
