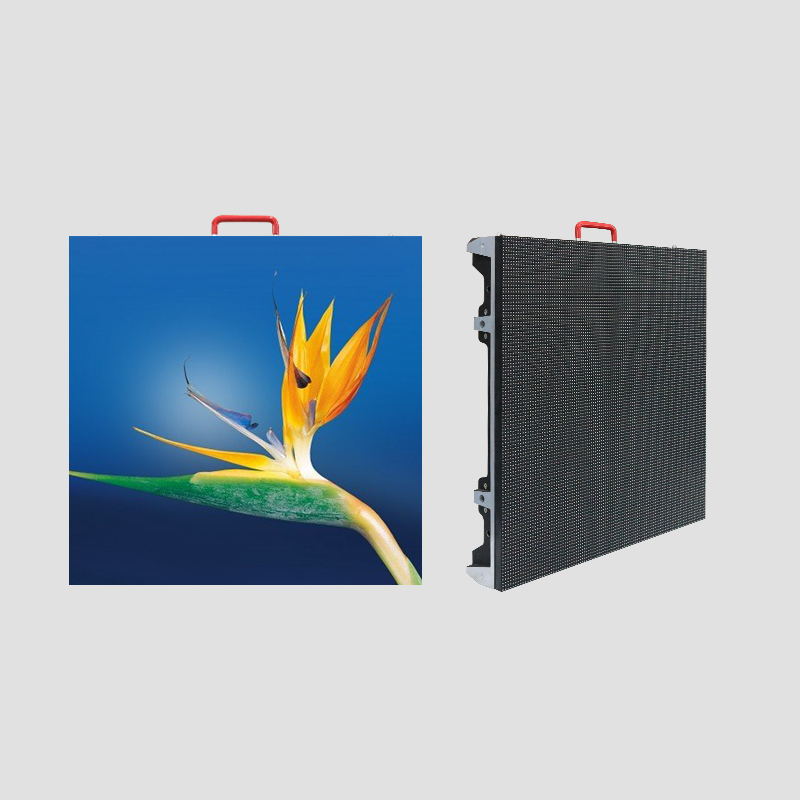

P3.91 rental led display outdoor for retailers

Register as member to view prices

MOQ: 1 Sets

Produce Period: 15-20 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

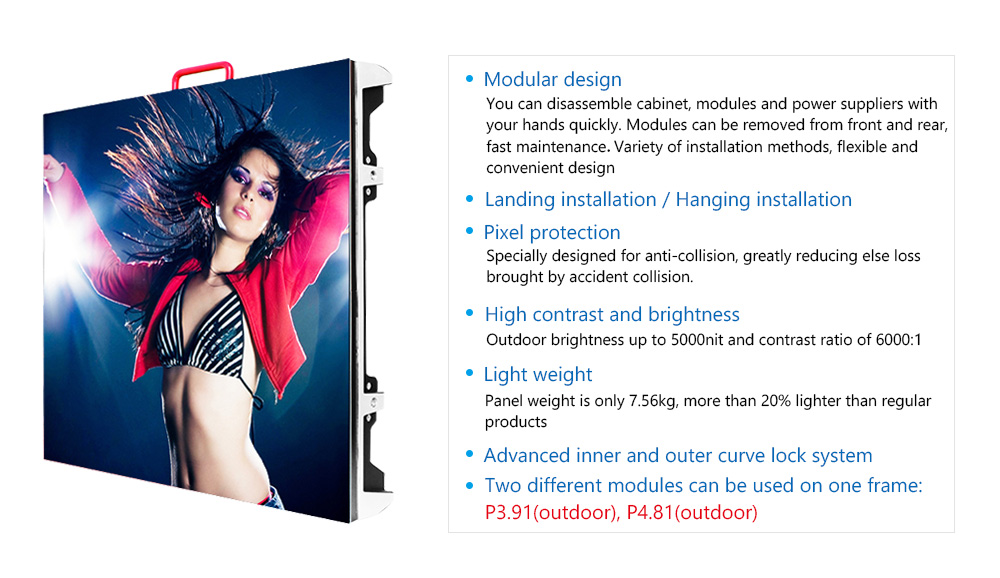

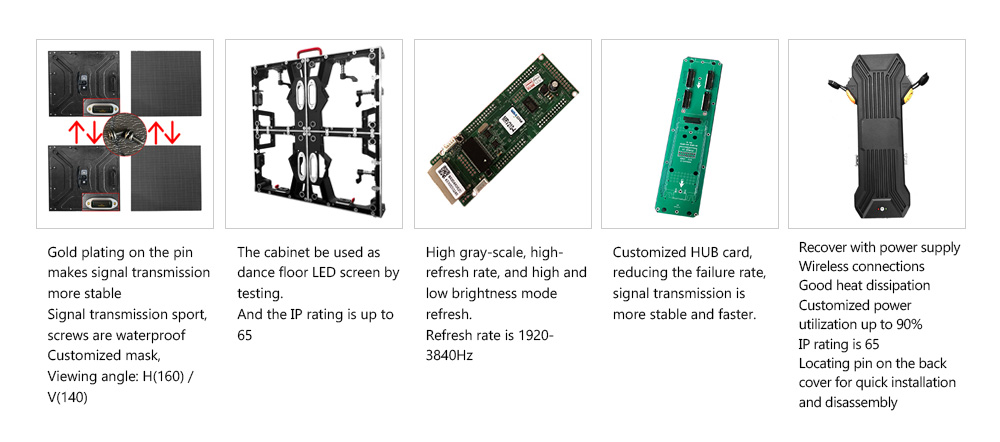

>>Key features:

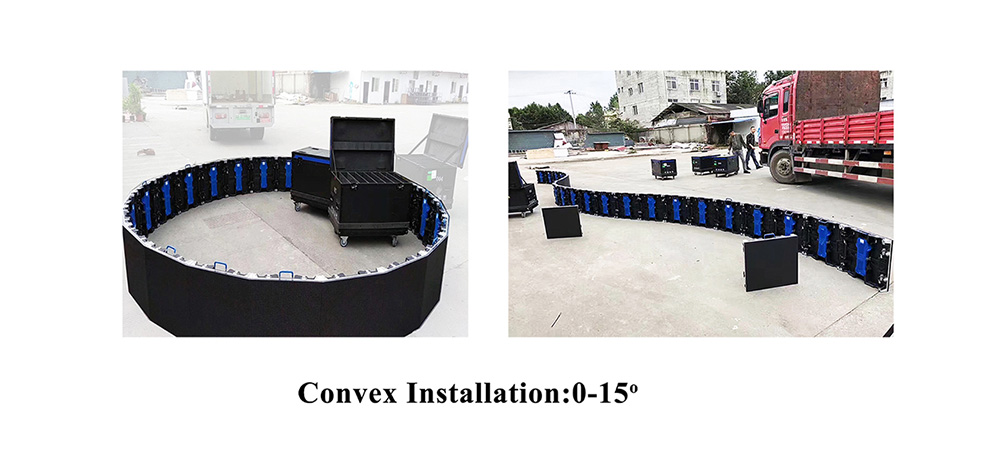

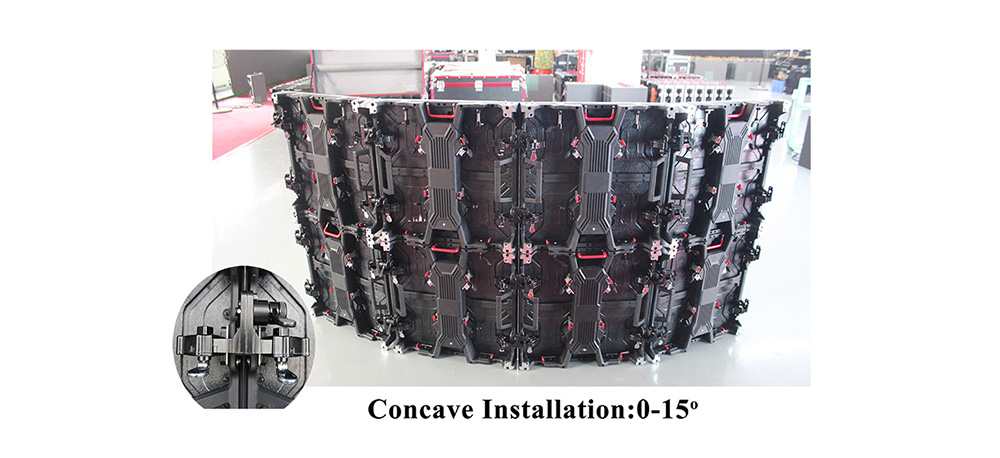

The inner and outer arcs 15°,0°,-15° multi-level adjustable.

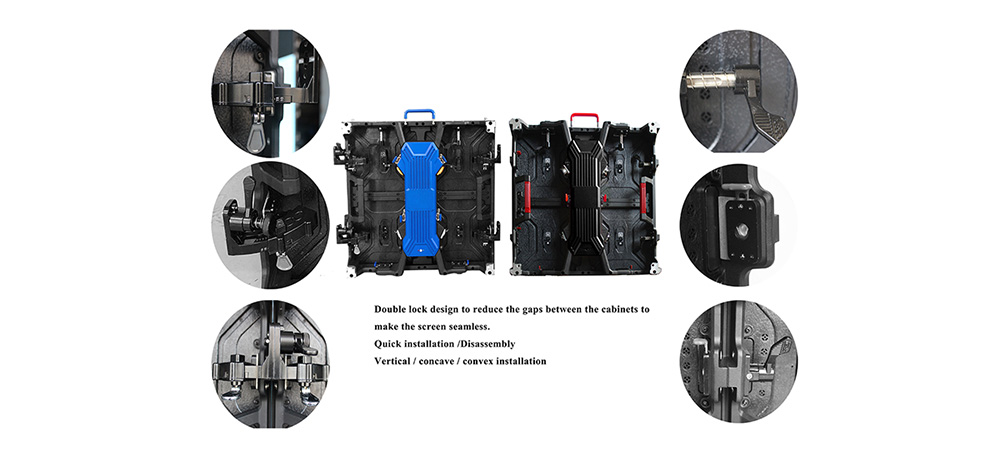

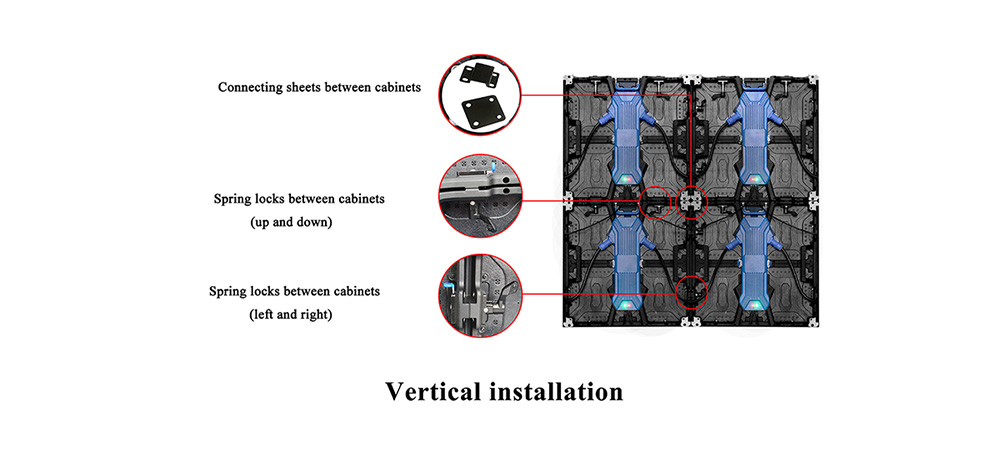

The cabinets are seamlessly spliced without bright lines or separate highlight bars.
It can be spliced into various shapes,such as inner arc,outer arc and cylinder,so that your creativity can be fully displayed.

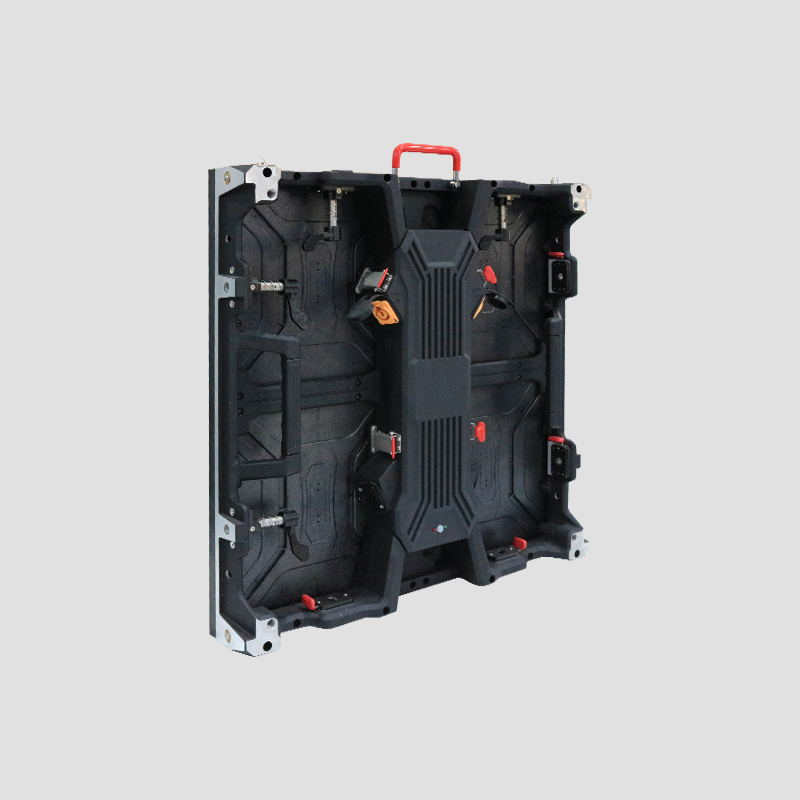

The cabinet is light and thin and can be quickly installed and disassembled.
The minimum ring diameter is more than 3m.
High-quality LED black lamp with high contrast and wide viewing angle.

>>Specifications

*Outdoor rental screen 500500 series**
Model NO.	P3.91	P4.81
Pixel Pitch	3.91mm	4.81mm
LED type	SMD1921	SMD1921
Flatness between modules	≤ 0.1mm	≤ 0.1mm
Pixel configuration	1R1G1B	1R1G1B
Module size *(WH)**	250*250mm	250*250mm
Module resolution (W*H)	64*64mm	52*52mm

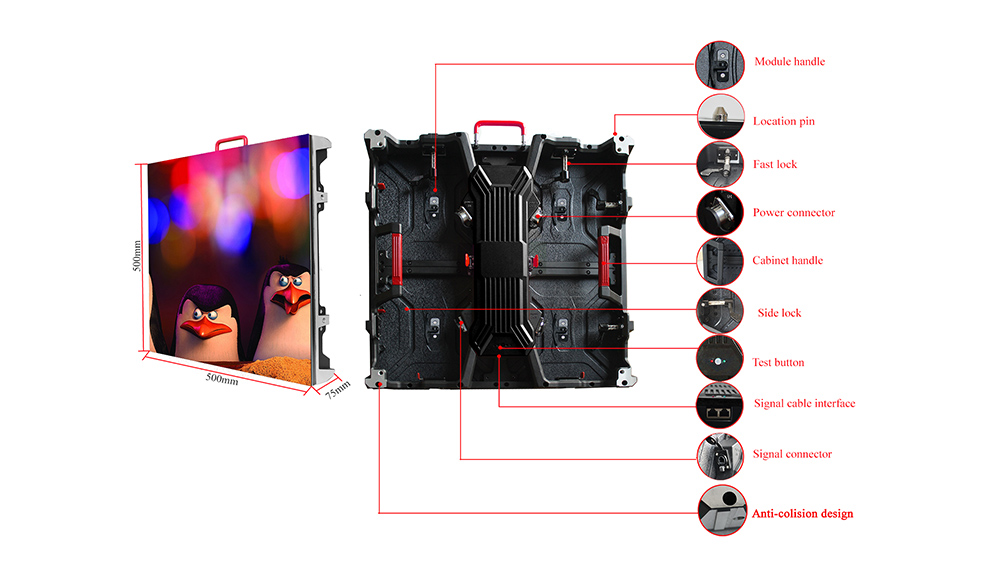

*Cabinet size(WHD)*	500mm×500mm×75mm	500mm×500mm×75mm
Cabinet resolution (W*H)	128*128mm	104*104mm
Cabinet weight	7.8kg/pc	7.8kg/pc
Density	65400dots/m²	44320dots/m²
IC	2038	2038
Scan	16S	13S
Best viewing distance	>4m	>5m
Best viewing angle	110°/ 110°	110°/ 110°
Brightness	3000-5000cd/m²	3000-5000cd/m²
Working voltage	AC：110-240V 50~60Hz	AC：110-240V 50~60Hz
Maximum power	≤600W/ m²	≤600W/ m²
Average power consumption	200W/m² ~300W / m²	200W/m² ~300W / m²
Screen temperature rise(running state)	≤ 5 degrees	≤ 5 degrees
Operation of Environmental Temperature/°C	-10°C~60°C	-10°C~60°C
Operating Temperature	10%~90%RH No condensation	10%~90%RH No condensation
Screen color temperature	2000K～9500K	2000K～9500K
Driving method	1/16 scanning	1/13 scanning
Gray scale	16 bits	16 bits
Refresh frequency	1920Hz	1920Hz
IP grade	Front:IP63 Back:IP65	Front:IP65 Back:IP65
Continuous working time	≥7×24hrs	≥7×24hrs
Lifetime	100,000hrs	100,000hrs

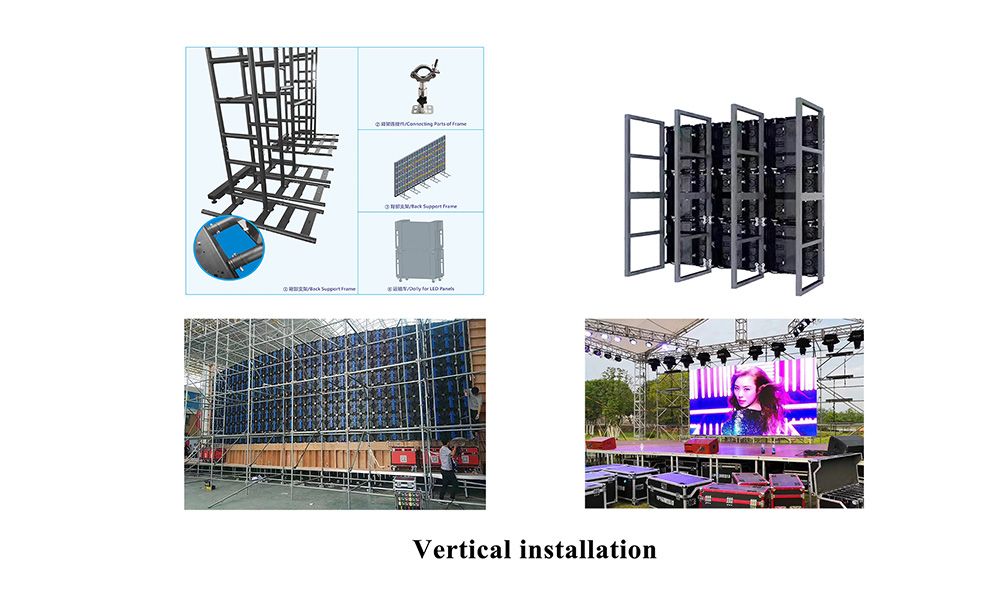

Installation method	Back Frame Installation / Hoisting / Inner Arc Installation
Pixel correction	Equipped with point - by - point brightness and chromaticity correction
Control mode	Synchronization control
Control distance	Super five double stranded network cable, more than 100 meters using optical fiber transmission
Software interface	Windows XP /7/8/10
Signal input	HDMI、DVI（Extensible interface）
Cabinet material	Die-casting Alu

*All technical specification, designs and photos subject to change without notice

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
