P4.81 rental led display outdoor for stage

Register as member to view prices

MOQ: 1 Sets

Produce Period: 15-20 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union
Description

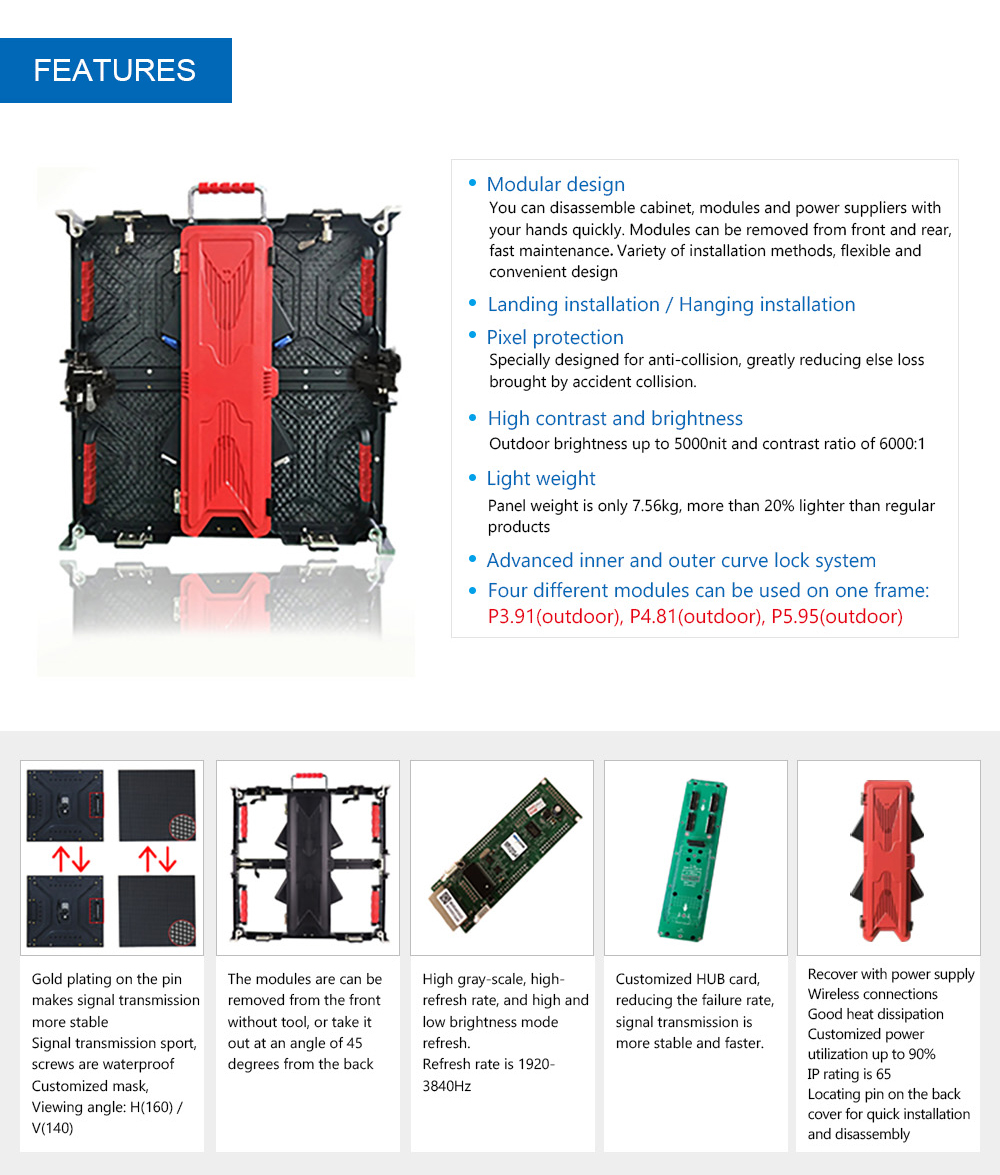

>>Key features:

  1. The inner and outer arcs 15°,0°,-15° multi-level adjustable.
  2. The cabinets are seamlessly spliced without bright lines or separate highlight bars.
  3. It can be spliced into various shapes,such as inner arc,outer arc and cylinder,so that your creativity can be fully displayed.
  4. The cabinet is light and thin and can be quickly installed and disassembled.
  5. The minimum ring diameter is more than 3m.
  6. High-quality LED black lamp with high contrast and wide viewing angle.



>>Specifications


Outdoor rental screen 500*500 series
Model NO. P3.91 P4.81
Pixel Pitch 3.91mm 4.81mm
LED type SMD1921 SMD1921
Flatness between modules ≤ 0.1mm ≤ 0.1mm
Pixel configuration 1R1G1B 1R1G1B

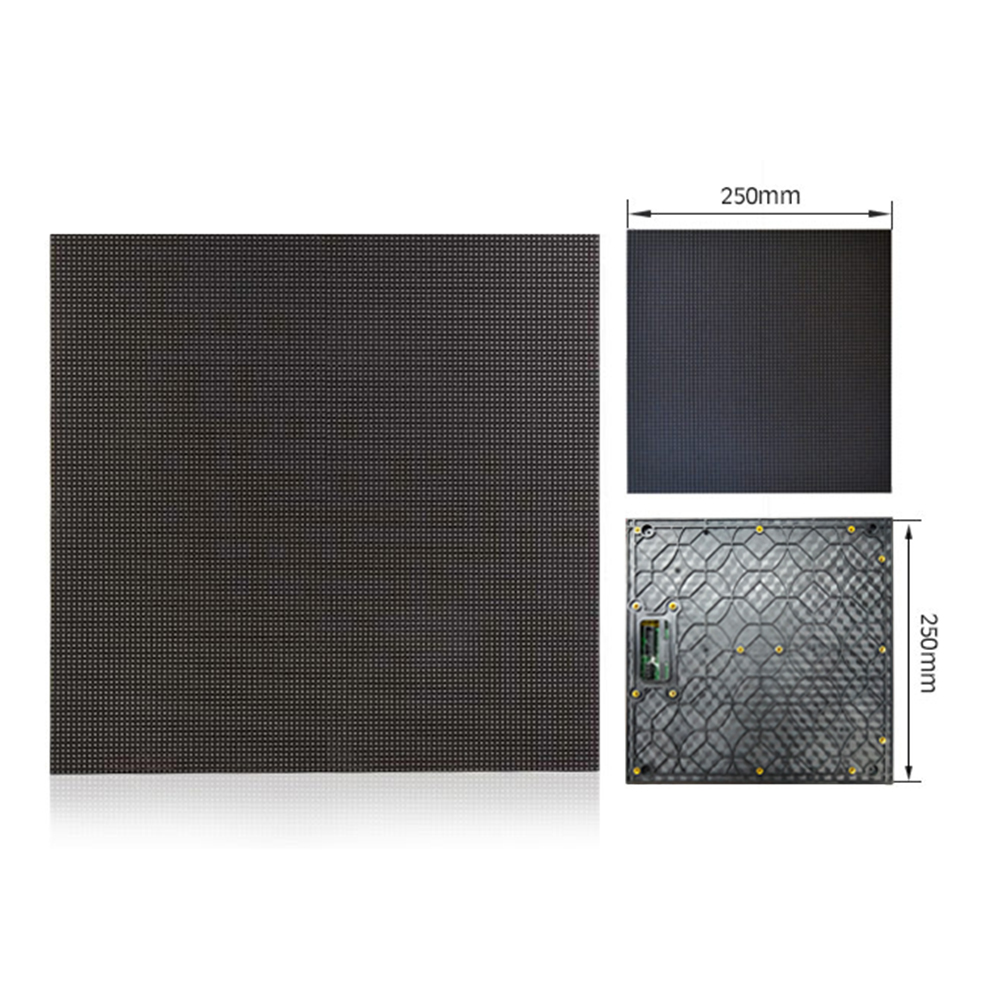

Module size (W*H) 250*250mm 250*250mm
Module resolution (W*H) 64*64mm 52*52mm
Cabinet size(W*H*D) 500mm×500mm×75mm 500mm×500mm×75mm
Cabinet resolution (W*H) 128*128mm 104*104mm
Cabinet weight 7.8kg/pc 7.8kg/pc
Density 65400dots/m² 44320dots/m²
IC 2038 2038
Scan 16S 13S
Best viewing distance >4m >5m
Best viewing angle 110°/ 110° 110°/ 110°
Brightness 3000-5000cd/m² 3000-5000cd/m²
Working voltage AC:110-240V  50~60Hz AC:110-240V  50~60Hz
Maximum power ≤600W/ m² ≤600W/ m²
Average power consumption 200W/m²
~300W / m²
200W/m²
~300W / m²
Screen temperature rise(running state) ≤ 5 degrees ≤ 5 degrees
Operation of Environmental Temperature/°C -10°C~60°C -10°C~60°C
Operating Temperature 10%~90%RH
No condensation
10%~90%RH
No condensation
Screen color temperature 2000K~9500K 2000K~9500K
Driving method 1/16 scanning 1/13 scanning
Gray scale 16 bits 16 bits
Refresh frequency 1920Hz 1920Hz
IP grade Front:IP63
Back:IP65
Front:IP65
Back:IP65
Continuous working time ≥7×24hrs ≥7×24hrs
Lifetime 100,000hrs 100,000hrs
Installation method Back Frame Installation / Hoisting / Inner Arc Installation
Pixel correction Equipped with point - by - point brightness and chromaticity correction
Control mode Synchronization control
Control distance Super five double stranded network cable, more than 100 meters using optical fiber transmission
Software interface Windows XP /7/8/10
Signal input HDMI、DVI(Extensible interface)
Cabinet material Die-casting Alu

*All technical specification, designs and photos subject to change without notice

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
