Transparent OLED Signage offers new ways to communicate visually and opens up a whole new
level of creativity that even conventional digital signage cannot offer.

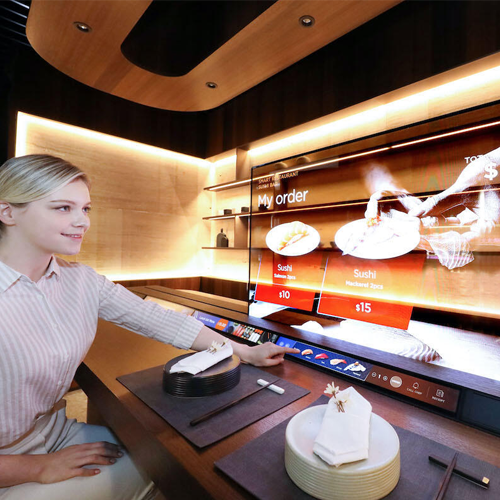

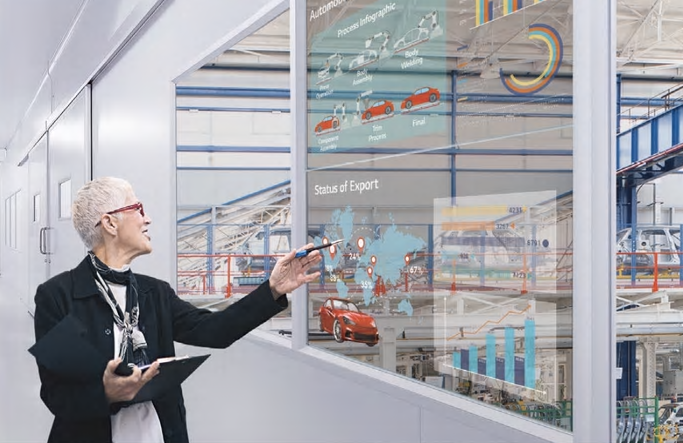

Transparent OLED Signage illuminates spaces that once were hidden away behind the display,
completely harmonizing with its surroundings.

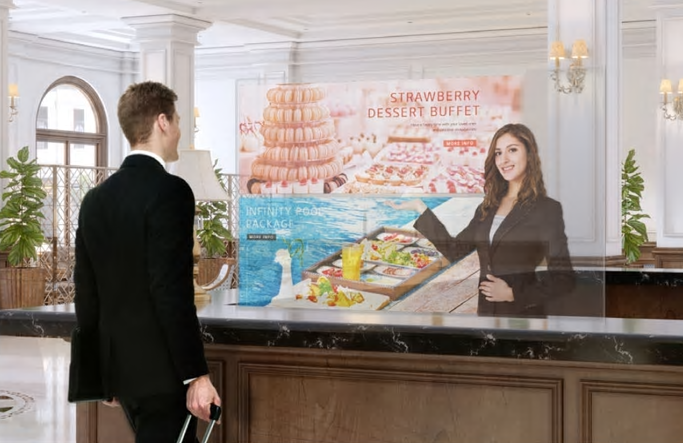

Boasting vivid and clear colors with high transparency, this display provides visual enhancements to
objects placed behind it, giving viewers an impressive "wow" factor.

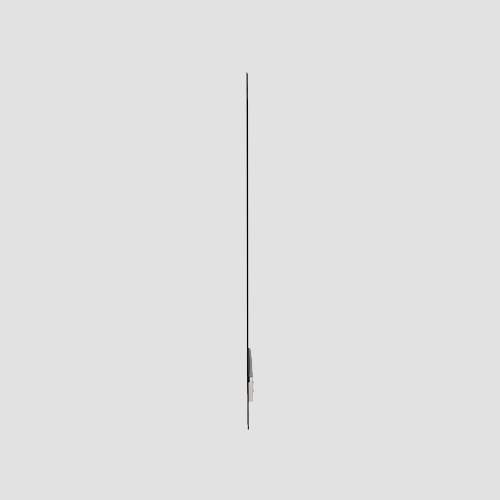

OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38% much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

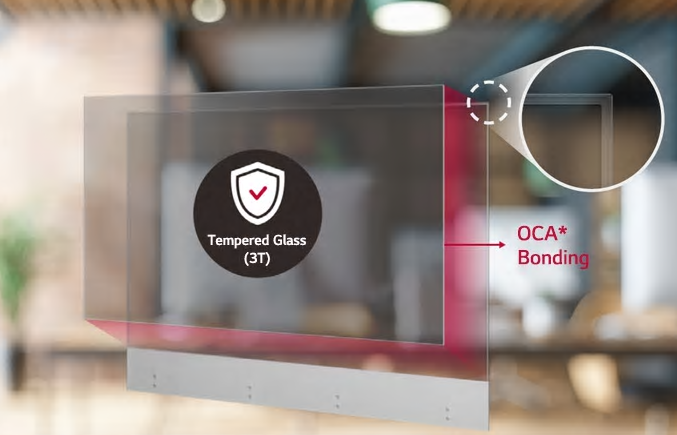

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

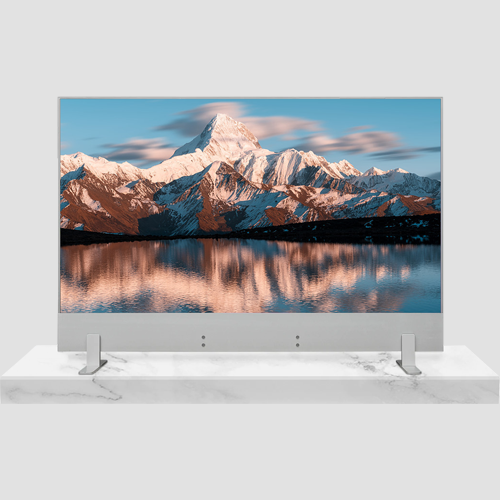

Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
PANEL
| Screen Size | 55" | Panel Technology | OLED |
| Native Resolution | 1,920 x 1,080 (FHD) | Brightness | 150/400nit (APL 100%/25%, Without Glass) |
| Contrast Ratio | 150,000 : 1 | Dynamic CR | No |
| Color gamut | BT709 120 % | Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10bit(R), 1.07Bilion colors | Response Time | 1 ms (G to G) |
| Surface Treatment (Haze) | Hard coating (2H) | Operation Hours (Hours / Day) | 18 / 7 (Moving Content Only) |
| Portrait / Landscape | Yes / Yes | Transparency | 38% (SET) |
