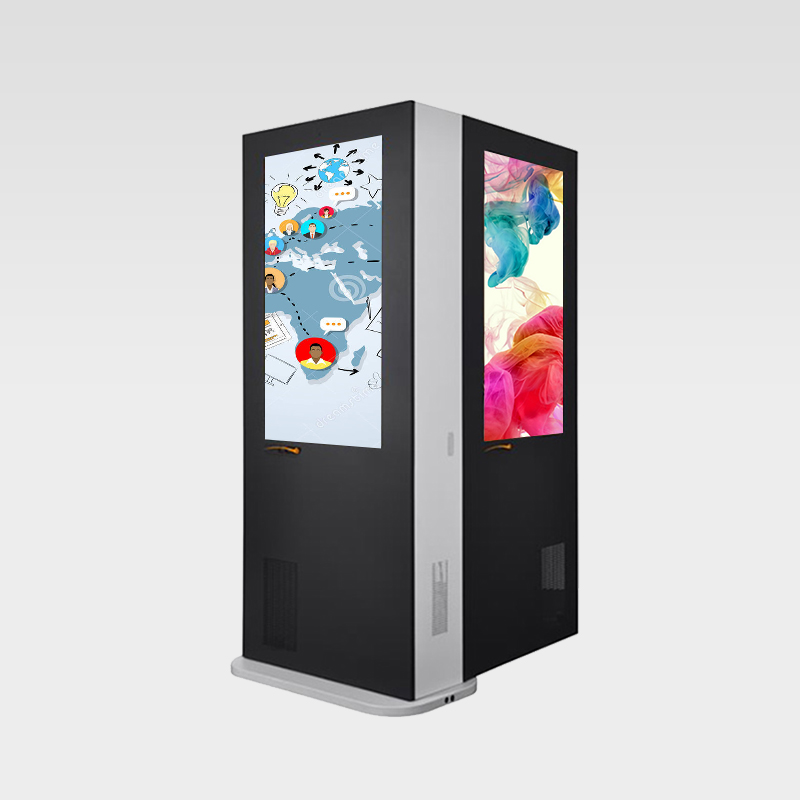

Access control gate outdoor lcd signage

Register as member to view prices

MOQ: 2 Sets

Produce Period: 15-30 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

>>Product key features:
1, LG High brightness LCD Module,2000nits brightness,Sunlight viewable,1920*1080 resolution,2000:1 contrast with LED backlight,automatic brightness adjustment;
2, Special designed LED backlight modular + constant current source drive components;
3, Patented cooling structure combination of high-quality fan conditioner;
4, IP65 grade all weatherproof dust-proof enclosure, +6mm vandal-proof protective glass, +1.5mm SPCC;
5, The installation has wall mounted and floor standing optional; This is the floor standing style.

>>Technology Optional modules

Item No.	Components	Descriptions
Core	Android board	RK3288,Quad core CPU,8GB memory,HDMI VGA input USB port
	Android board	RK3188,Dual core CPU,4GB memory,HDMI VGA input USB port
	Advertising license	Advertising software with license
	Windows board	i3 CPU,4GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45
	Windows board	i5 CPU,16GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45
	Windows board	i7 CPU,16GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45
	Windows license	Official Windows license
	AR glass	Quality high transmittance rate AR glass
Modules	Nano Touch	10dots Nano touch(standard)
	Heating module	Air conditionner cooling no need
	WiFi hotspot	WiFi hotspot module
	Normal built in Camera	2 mega pixel built in camera
Panel specification,input output port,mechanical properties
Panel	Panel type	LG TFT LCD
	Physical Resolution	1920*1080
	Color depth	10bit(D), 1.07Billon colors
	Viewing Angle	H178º/ V178º
	Luminance(nits)	2000cd/m2
	Contrast	Typical:1100,MIN:800
	Backlit type	LED
	Response time	6ms
	Life(hrs)	more than 60000
Core Board	BOARD	Optional from above
Consumption	Power Supply	AC100~240V 50/60Hz
	Standby/Max.Consumption	≤1300W
	speaker	2 x10W
Working function &Environment	Control Method	Depends on above board choosen
	Color System Support	PAL/NTSC/SECAM
	OSD Language	English/Multiple Language
	Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolutions
	Video format support	MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
	Image format support	JPEG/BMP/TIFF/PNG/GIF
	Audio format support	Wave/MP3/WMA/AAC
	Splicing Display	Support
	Working Temperature	-40℃-50℃
	Working Humidity	-40%-55%
	Storage Temperature	0℃-50℃
	Storage Humidity	5%-95%
	Cooling	Fan cooling
Appearance &packing	Application Condition	Pure outdoor all weatherproof
	Material	Cold-roll steel SPCC
	Frame Color	Black/White/Silver/Customization
	Mount/Installation type	Standing,iPhone seamless design
	Packing way	Safe packing with bubble foam, in wooden case
	Packing Weight	120KG /unit for 43 inch
	Quality Standard	ISO9001,CE,RoHS,FCC,CCC

For more technical and commercial contact, welcome contact with our distributor or overseas sales
All technical specification, designs and photos subject to change without notice

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
