| Item No | Components | Descriptions |
| Core | Android board | RK3288,Quad core CPU,8GB memory,HDMI VGA input USB port |
| Android board | RK3188,Dual core CPU,4GB memory,HDMI VGA input USB port | |
| Advertising license | Advertising software with license | |
| Windows board | i3 CPU,4GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45 | |
| Windows board | i5 CPU,16GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45 | |
| Windows board | i7 CPU,16GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45 | |
| Windows license | Official Windows license | |

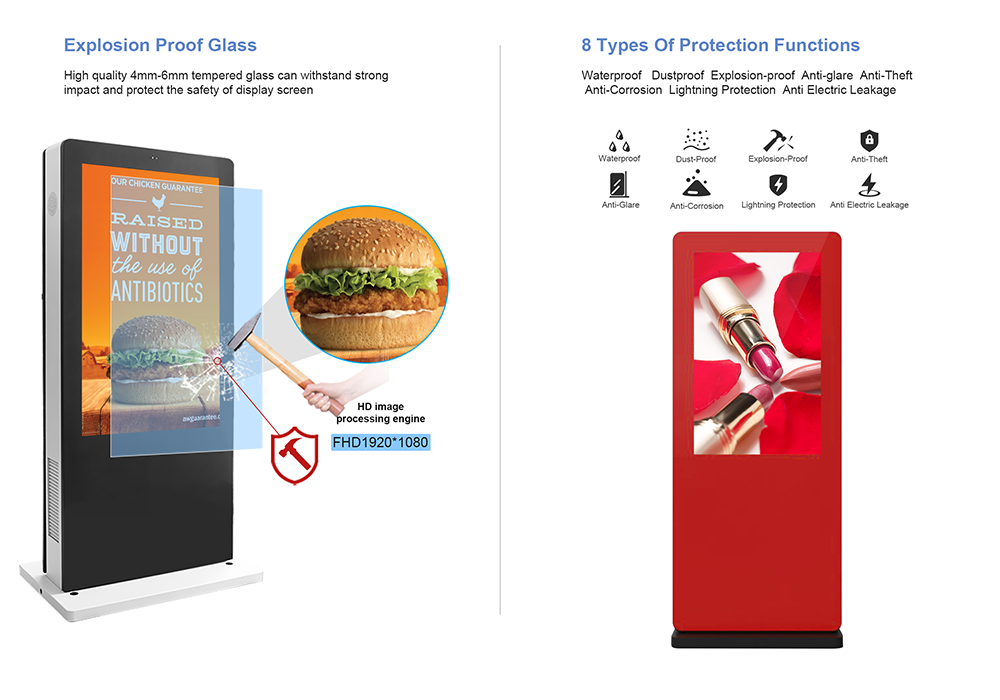

| AR glass | Quality high transmittance rate AR glass | |
| Modules | Nano Touch | 10dots Nano touch(standard) |
| Heating module | Air conditionner cooling no need | |
| WiFi hotspot | WiFi hotspot module | |
| Normal built in Camera | 2 mega pixel built in camera | |

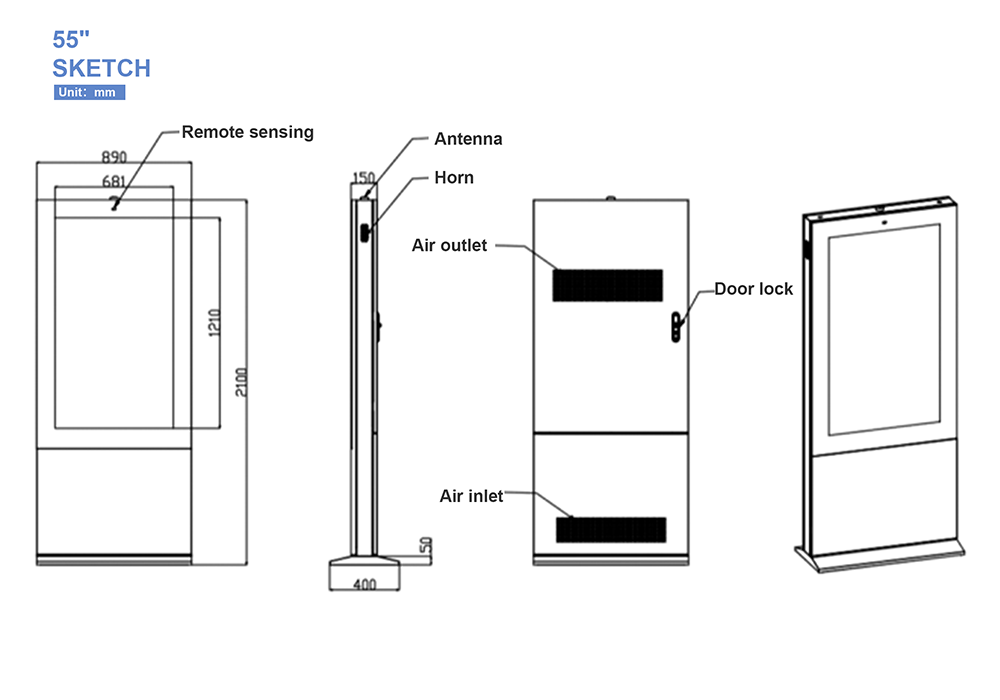

| Panel specification,input output port,mechanical properties | ||
| Panel | Panel type | LG TFT LCD |
| Physical Resolution | 1920*1080 | |
| Color depth | 10bit(D), 1.07Billon colors | |
| Viewing Angle | H178º/ V178º | |
| Luminance(nits) | 2000cd/m2 | |
| Contrast | Typical:1100,MIN:800 | |
| Backlit type | LED | |
| Response time | 6ms | |
| Life(hrs) | more than 60000 | |
| Core Board | BOARD | Optional from above |
| Consumption | Power Supply | AC100~240V 50/60Hz |
| Standby/Max.Consumption | ≤1300W | |
| speaker | 2 x10W | |
| Working function &Environment | Control Method | Depends on above board choosen |
| Color System Support | PAL/NTSC/SECAM | |
| OSD Language | English/Multiple Language | |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolutions | |
| Video format support | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |
| Image format support | JPEG/BMP/TIFF/PNG/GIF | |
| Audio format support | Wave/MP3/WMA/AAC | |
| Splicing Display | Support | |
| Working Temperature | -40℃-50℃ | |
| Working Humidity | -40%-55% | |
| Storage Temperature | 0℃-50℃ | |
| Storage Humidity | 5%-95% | |
| Cooling | Fan cooling | |

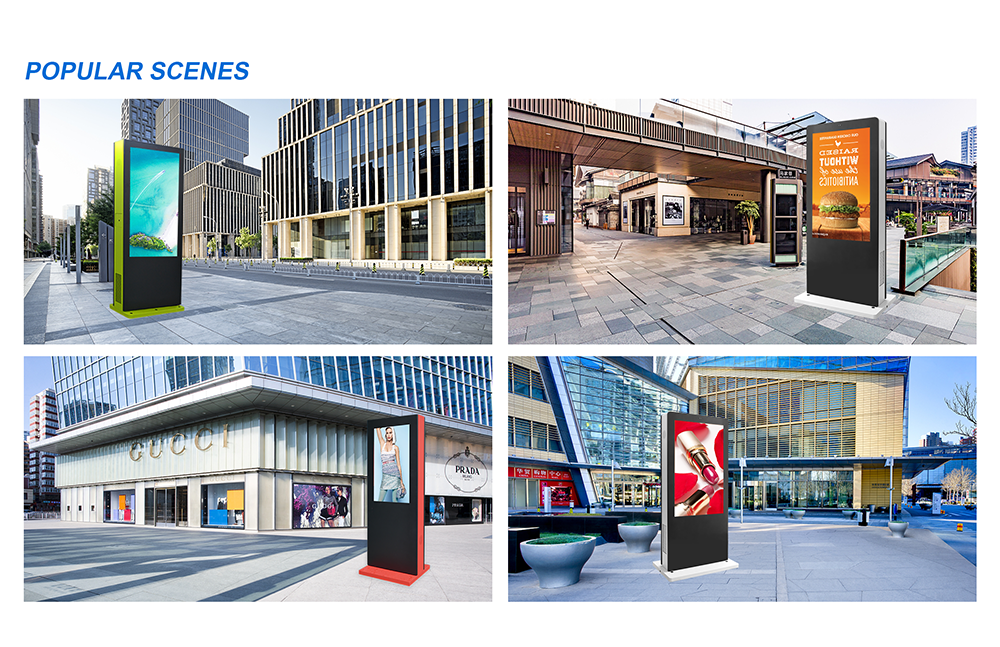

| Appearance &packing | Application Condition | Pure outdoor all weatherproof |
| Material | Cold-roll steel SPCC | |
| Frame Color | Black/White/Silver/Customization | |
| Mount/Installation type | Standing,iPhone seamless design | |
| Packing way | Safe packing with bubble foam, in wooden case | |

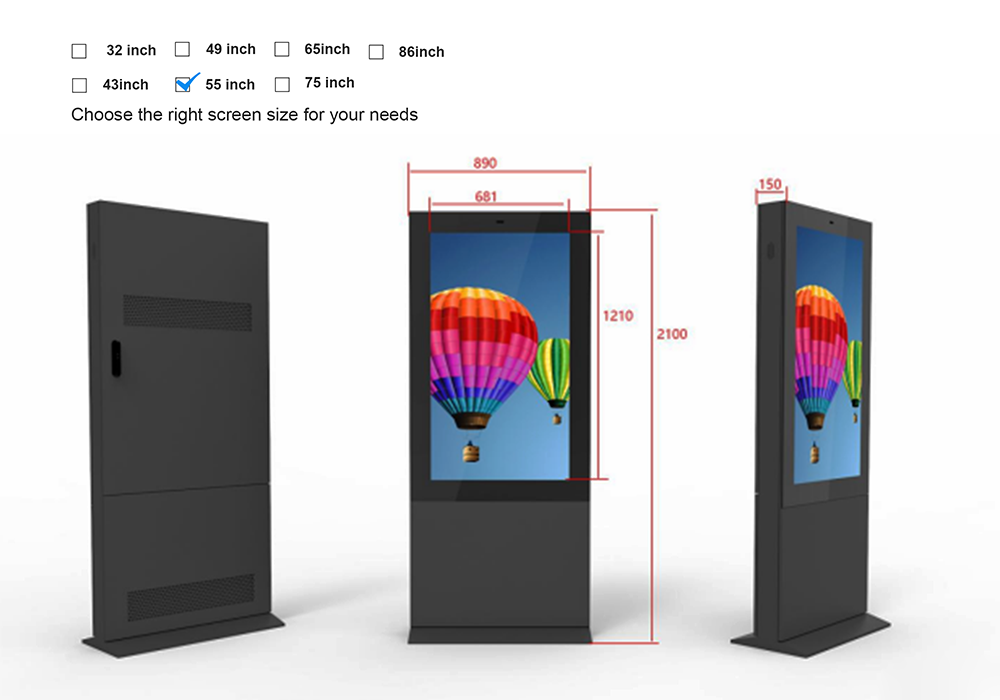

| Packing Weight | 120KG /unit for 43 inch | |
| Quality Standard | ISO9001,CE,RoHS,FCC,CCC | |
