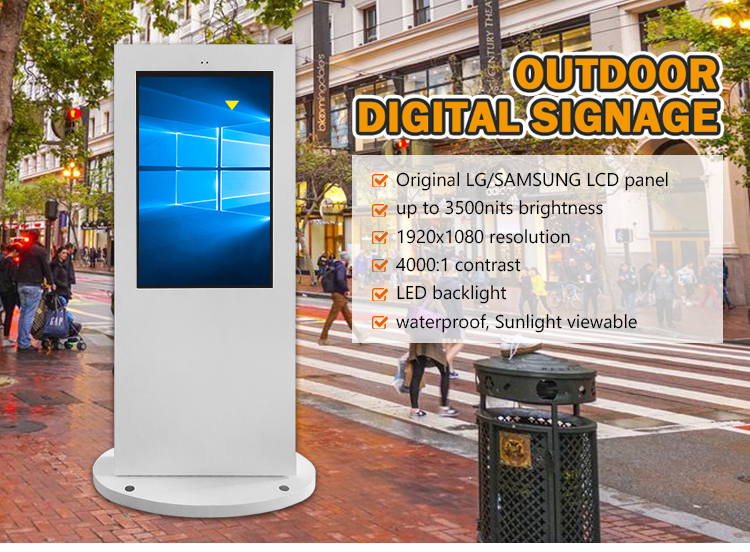

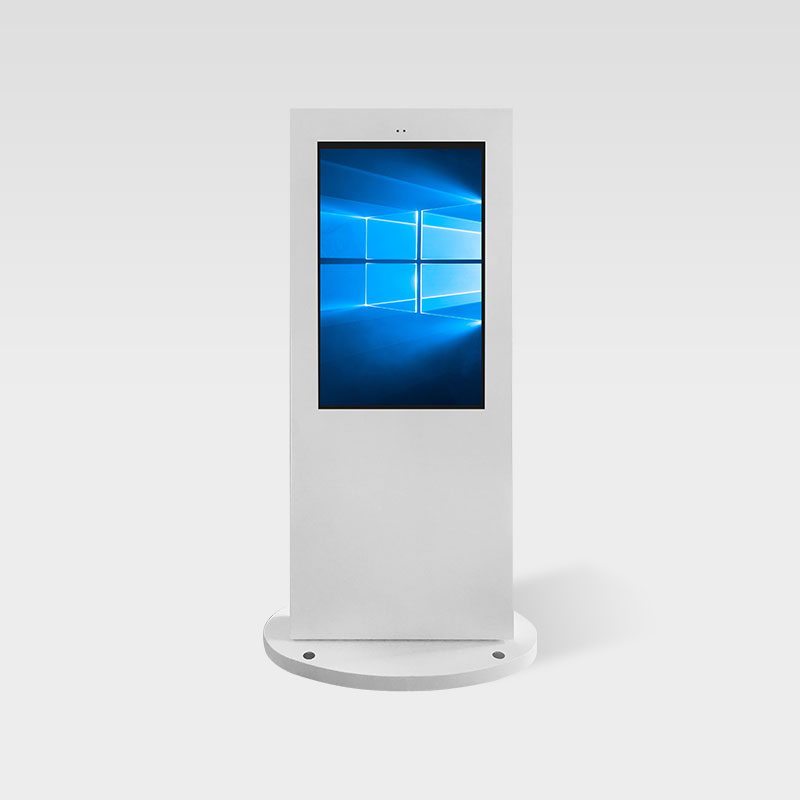

Ultra thin outdoor digital signage

Register as member to view prices

MOQ: 2 Sets

Produce Period: 15-30 days

Supply Ability: 1000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union
Description




>>Product key features:
1, LG High brightness LCD Module,2000nits brightness,Sunlight viewable,1920*1080 resolution,2000:1 contrast with LED backlight,automatic brightness adjustment;
2, Special designed LED backlight modular + constant current source drive components;
3, Patented cooling structure combination of high-quality fan conditioner;
4, IP65 grade all weatherproof dust-proof enclosure, +6mm vandal-proof protective glass, +1.5mm SPCC;
5, The installation has wall mounted and floor standing optional; This is the floor standing style;

>>Technology Optional modules

Item No. Components Descriptions
Core  Android board  RK3288,Quad core CPU,8GB memory,HDMI VGA input USB port
 Android board  RK3188,Dual core CPU,4GB memory,HDMI VGA input USB port
 Advertising license  Advertising software with license
 Windows board  i3 CPU,4GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45
 Windows board  i5 CPU,16GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45
 Windows board  i7 CPU,16GB memory,500GB HDD,HDMI VGA ouput,USB,WiFi,RJ45
 Windows license  Official Windows license
 AR glass  Quality high transmittance rate AR glass
Modules  Nano Touch  10dots Nano touch(standard)
 Heating module  Air conditionner cooling no need
 WiFi hotspot  WiFi hotspot module
 Normal built in Camera  2 mega pixel built in camera
 Panel specification,input output port,mechanical properties
Panel  Panel type  LG TFT LCD
 Physical Resolution  1920*1080
 Color depth  10bit(D), 1.07Billon colors
 Viewing Angle  H178º/ V178º
 Luminance(nits)  2000cd/m2
 Contrast  Typical:1100,MIN:800
 Backlit type  LED
 Response time  6ms
 Life(hrs)  more than 60000
Core Board  BOARD  Optional from above
Consumption  Power Supply  AC100~240V 50/60Hz
 Standby/Max.Consumption  ≤1300W
 speaker  2 x10W
 Working function &Environment   Control Method  Depends on above board choosen
 Color System Support  PAL/NTSC/SECAM
 OSD Language  English/Multiple Language
 Rich Resolution  Support 1080P,1080I,720P,480P &multiple resolutions
 Video format support  MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
 Image format support  JPEG/BMP/TIFF/PNG/GIF
 Audio format support  Wave/MP3/WMA/AAC
 Splicing Display  Support
 Working Temperature  -40℃-50℃
 Working Humidity  -40%-55%
 Storage Temperature  0℃-50℃
 Storage Humidity  5%-95%

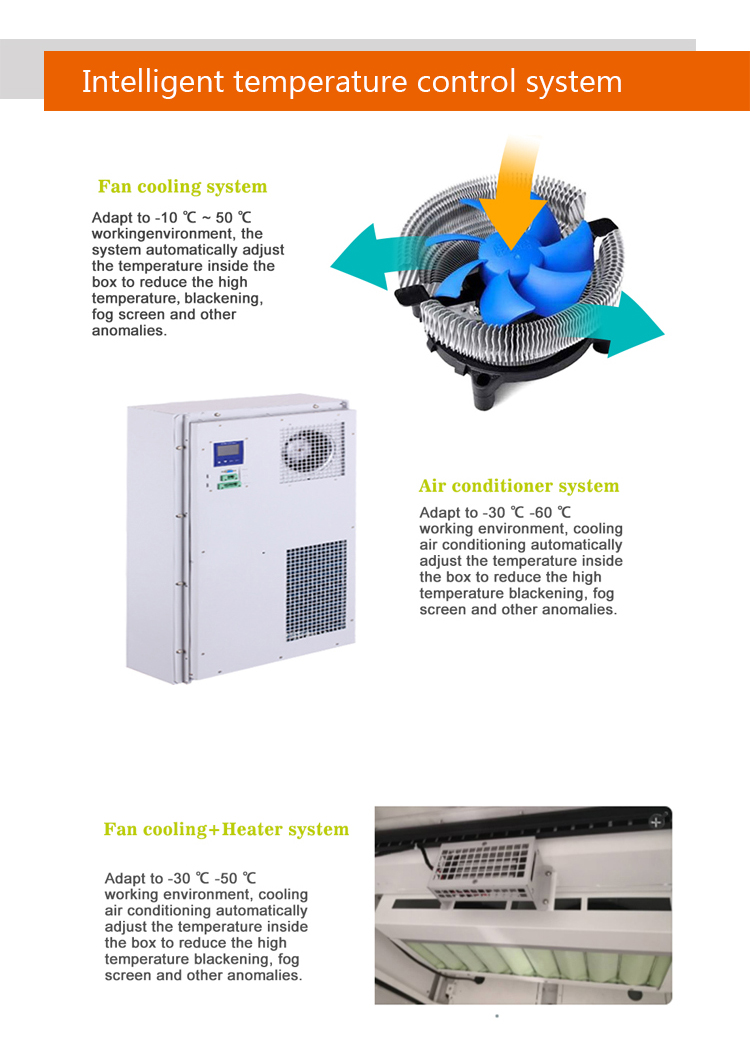

 Cooling  Fan cooling
Appearance &packing  Application Condition  Pure outdoor all weatherproof
 Material  Cold-roll steel SPCC
 Frame Color  Black/White/Silver/Customization
 Mount/Installation type  Standing,iPhone seamless design
 Packing way  Safe packing with bubble foam, in wooden case
 Packing Weight  120KG /unit for 43 inch
 Quality Standard  ISO9001,CE,RoHS,FCC,CCC

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
