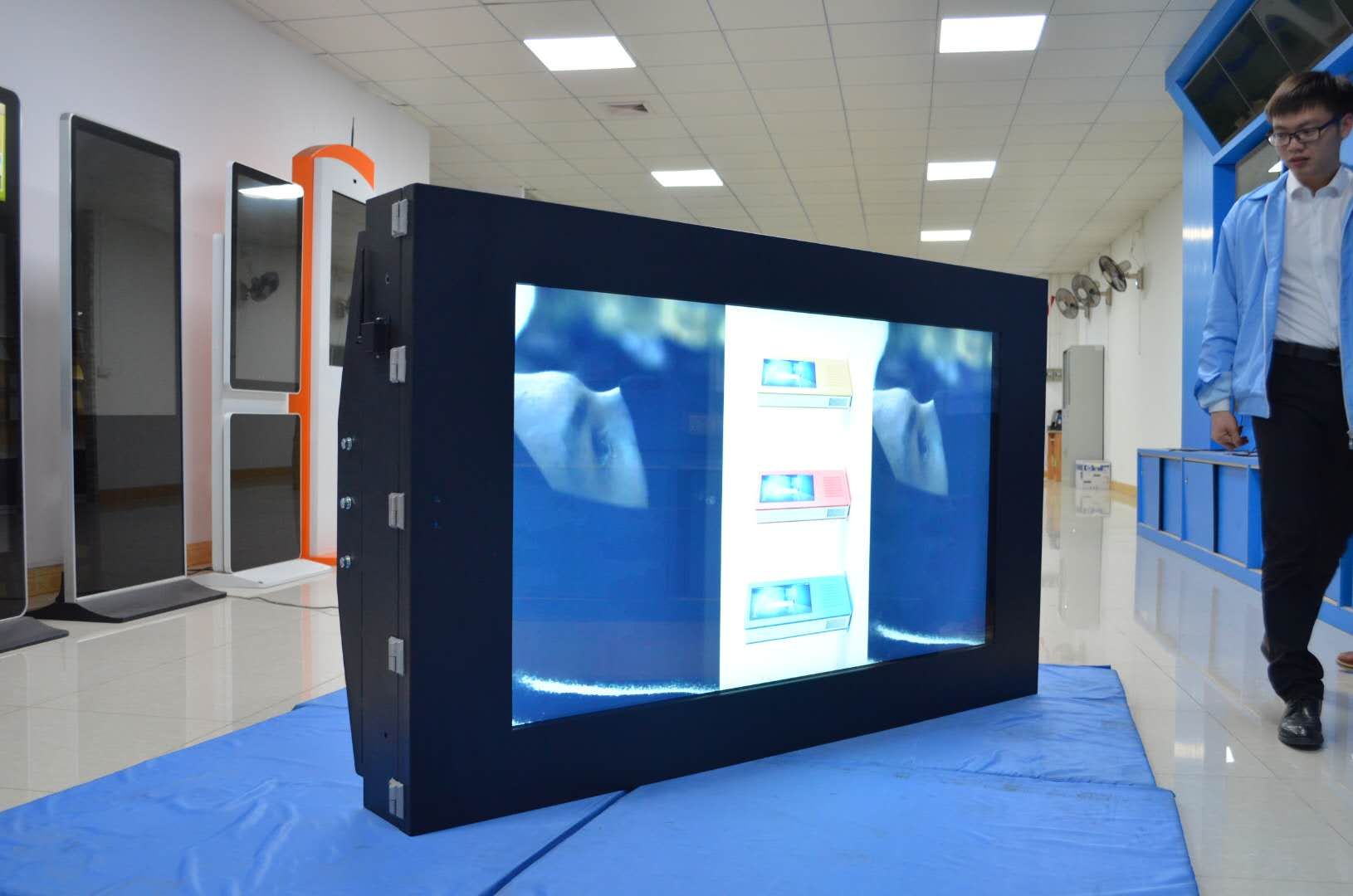

Hospital Medical Center Outdoor Digital Signage

Register as member to view prices

MOQ: 5 Sets

Produce Period: 5-7 days

Supply Ability: 1000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union
Description

specification

Model NO. 32” 43” 49” 55” 65” 75” 86”
Panel parameter Backlight type Direct led

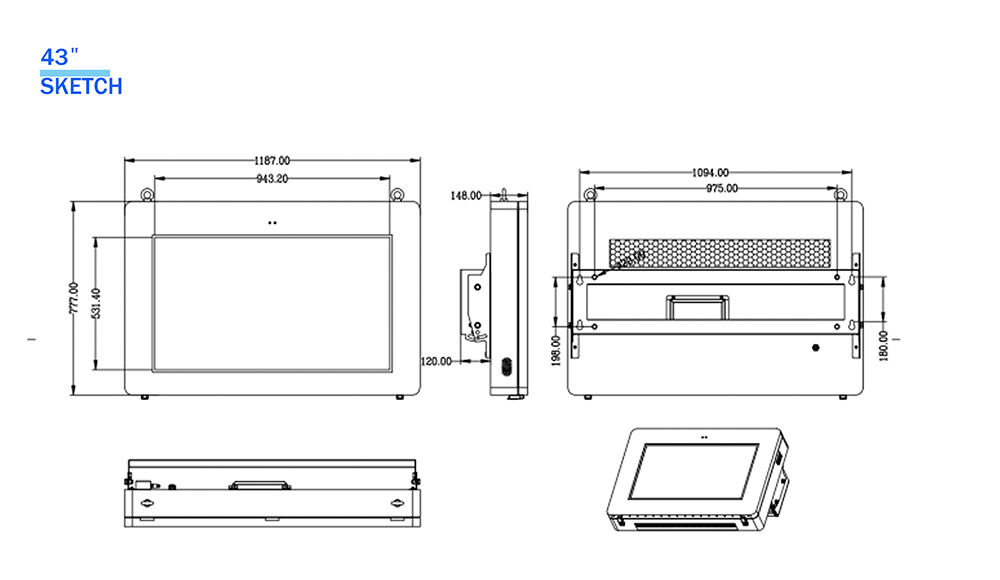

Display dimension 698*392 941*529 1074*604 1210*680 1429*804 1650*928 1895*1065
mm mm mm mm mm mm mm
Display scale 16:09
Resolution 1920*1080 3840*2160 3840*2160
Display color 16.7m
Brightness 3500nits
Contrast 3500:01:00
Viewing angle 178°(H)/178°(V)
Response time 50ms
Life span 50000 hours



solution

Android OS:
OS Android 4. 4 OS
CPU RK3288,1.8GHZ
DDR 2G DDR3
ROM: 8G NAND FLASH
Exteral ROM Support up to 32G bytes sd card and support stata hard disk interface
WiFi Support 802.11b/g/n wifi module
Interface USB2.0,Ypbpr,VGA,AV,SD card slot,3G interface,SIM Card,RJ45



Windows OS(PC1 solution)
CPU Intel Dual core J1900 Processor (2.8GHz, Quad Core)
Chipset INTEL®GM45+ ICH9M-E
RAM 4GB DDR3 1333 RAM (Up to 6GB)
Graphics INTEL® HD Video card
Audio HD 8-channel (7.1) audio subsystem
Network 10/100/1000M Gigabit Ethernet Controller
WiFi High quality WiFi module included (802.11 B/G/N)
H.D.D. 128 GB SSD
Speaker 2 build-in high quality stereo speakers (5w
O.D.D DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit (Optional)
Pre-Installed OS Windows7
TV Tuner No



Windows OS(PC2 solution option):
CPU Intel Core i3 (3th generation, Dual Core)/i5/i7
RAM 4GB DDR III 1333 RAM (Up to 16GB)
Graphics INTEL® HD Video card
Audio HD 8-channel (7.1) audio subsystem
Network 10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi High quality WiFi module included (802.11 B/G/N)
H.D.D. 120GB SSD
Speaker 2 build-in high quality stereo speakers (3w or 5w)
O.D.D DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit (Optional)
Pre-Installed OS Windows 8 or Linux
TV Tuner Optional





*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
