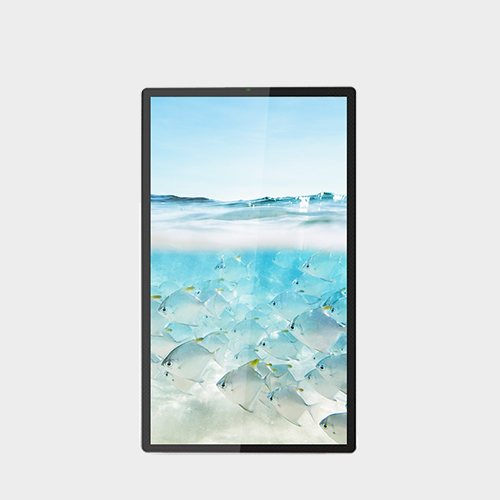

Full Optical Bonding IP66 Ultra Thin Outdoor Digital Signage

Register as member to view prices

MOQ: 1 Sets

Produce Period: 30-60 days

Supply Ability: 100 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union

INQUIRY PDF Format

Description

>>Key features:

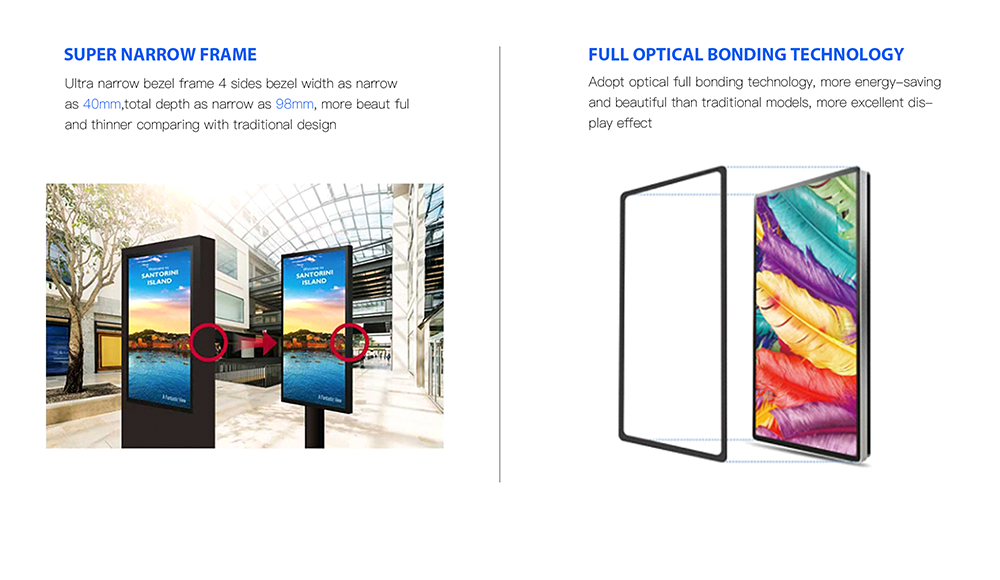

1.Fully fit screen technology, 38mm ultra-narrow frame,98mm ultra-thin thickness,Super large screen accounts for 96%.
2.Protection grade IP66, explosion protection grade IK10.
3.Industrial - grade high - brightness screen, high - temperature resistance.
4.Military superconducting uniform temperature technology, fast heat dissipation

>>Specifications

Screen	Sizes	32”	43”	49”	55”	65”	75”	86”
	Backlight type	LG /AUO/BOE
	Display dimension	697*392	941*530	1074*604	1209*680	1428*803	1650*928	1895*1065
	Brightness	2000nits	2500nits	3000nits
	Resolution	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080	3840*2160	3840*2160
	Display scale	16:09
	Contrast	1900/5/24 20:01
	Backlight type	6S
	Viewing angle	178°(H)/178°(V)
	Light type	Vertical LED
	Life span	60000hours

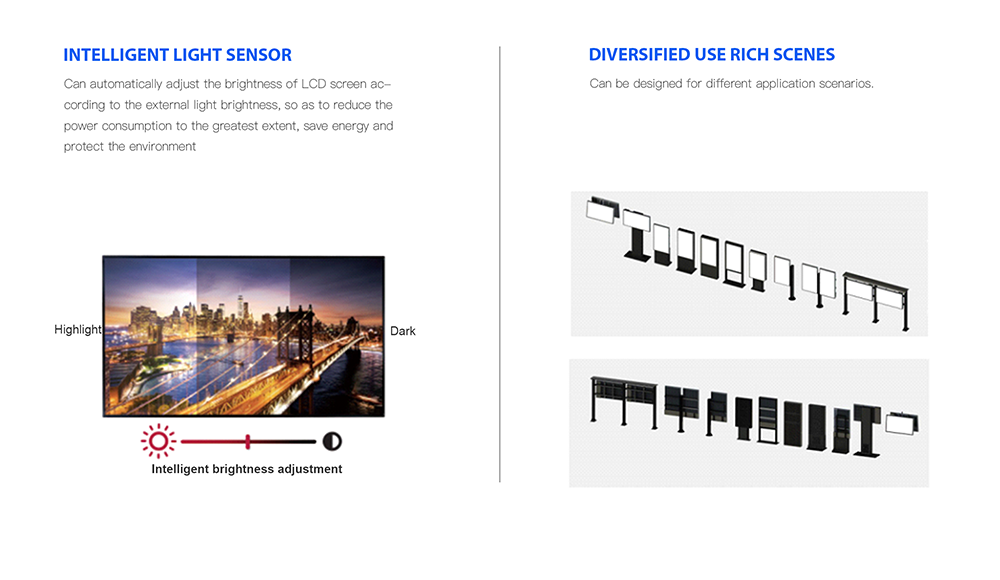

Control system	Intelligent dimmer	YES
	Intelligent temperature	YES
voltage	Power input	AC220/110V±10%，50/60 HZ
	Rated power	130W	180W	260W	300W	400W	600W	800W
Outer Shell	Protection level	IP66
	Shell material	Aluminium profile
	Shell life	Eight years
	Glass types	AR Antireflection glass

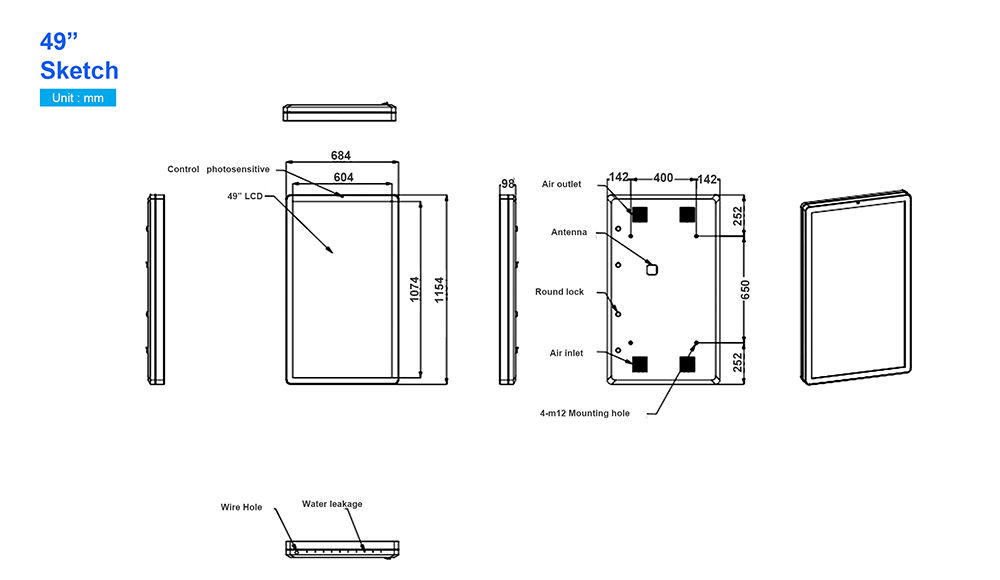

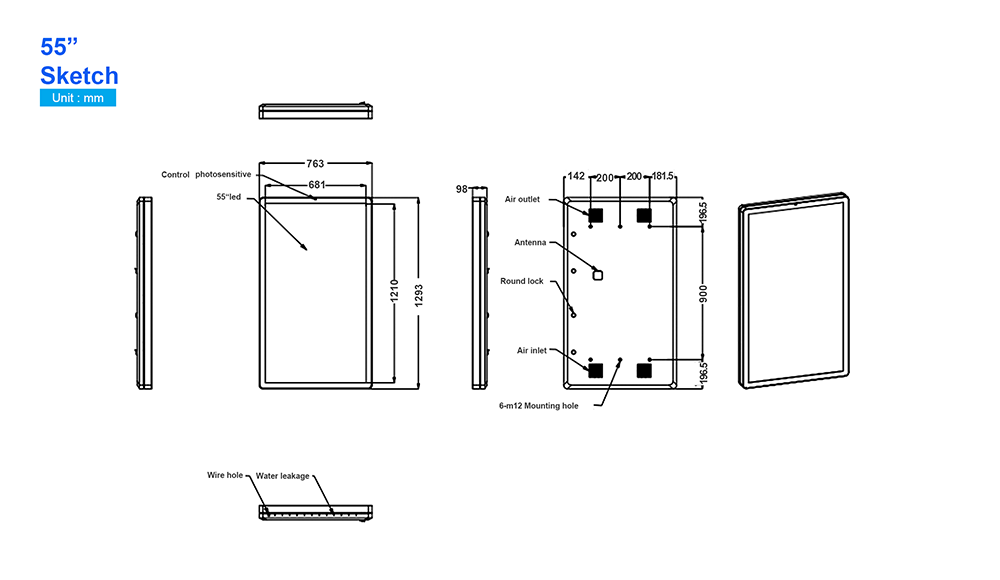

	Product size	47277798	610102198	684115498	763129398	883150898	1028175098	1115199598
	Weight(kg)	35kg	45kg	60kg	65kg	90kg	120kg	160kg
Service Environment	Service Environment	All outdoors
	Use of temperature	-30℃~+80℃
	Ambient humidity	5%~98%
Multimedia	Configuration	Memory		Run		System
	Windows	4G		128g		win7/win10
	Android	2g		8g		Android5.0
	Networking method	RJ45,WIFI,4G(optional)
	Data interface	VGA， HDMI，DVI，USB，RS232
