49 inch 1.8mm bezel LG Video Wall Display

Register as member to view prices

MOQ: 2 Sets

Produce Period: 2-3 days

Supply Ability: 2000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price Terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWesternunion

INQUIRY PDF Format

Description

>>Product key features:
1, Panel size: 46″, 49″, 55″, 65″ optional;
2, Ultra narrow frame design, the narrowest bezel is 0.88mm and the bezel can be optional;

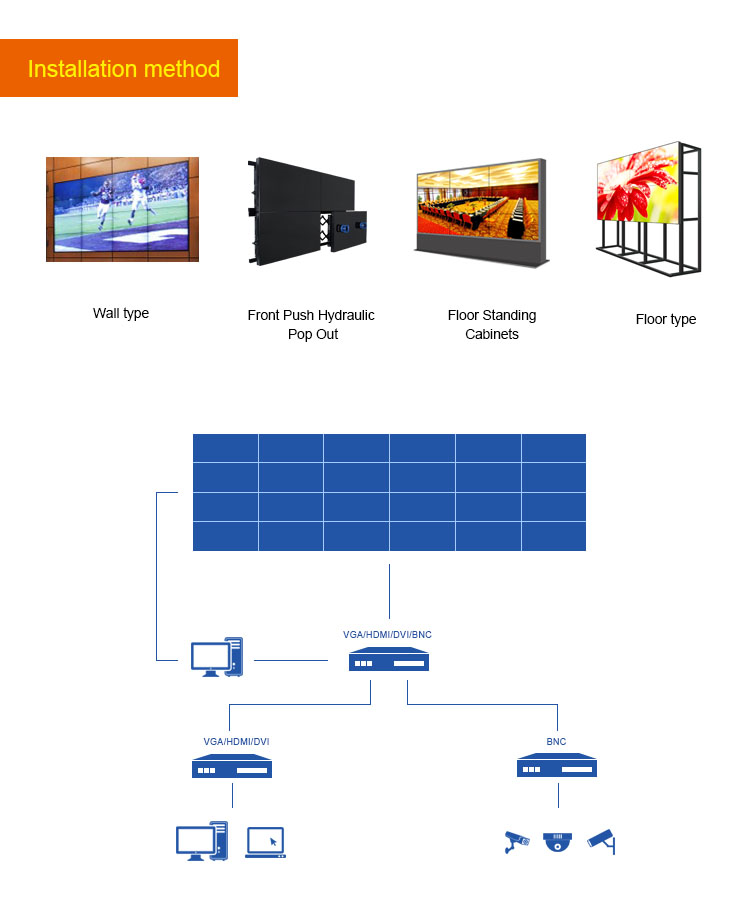

3, Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional;
4, The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
5, Interfaces: 2xHDMI input,DP loop in,DP loop out,DVI input, VGA input,CVBS loop,USB,Switch, Power port;
6, Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker;
7, Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
8, Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;

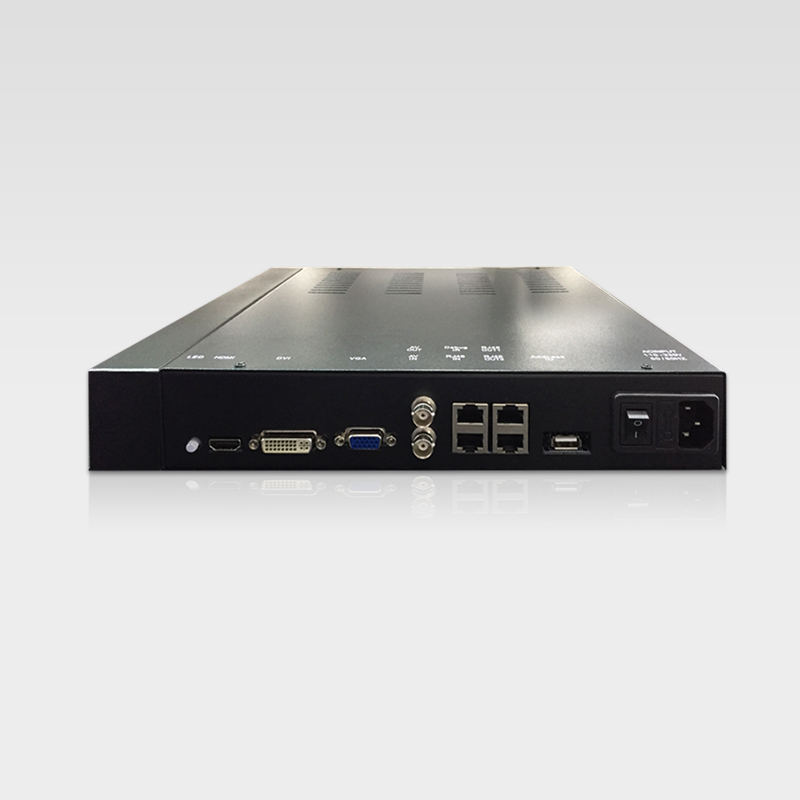

9, Video wall screen with 1080P HDMI input daisy chain controller board;
10, HDMI splitter to combine the screens to a big wall;
11, Quality SPCC video wall racks for 49” lcd videowall with complete accessories.

>>Technology Optional modules

Item No.	Components	Descriptions
1	49" LG 1.8mm bezel	500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input
2	System controller	1 in 16output HDMI splitter
3	Bracket	POP out bracket for 49" lcd video wall
4	Standard Accessories	English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
5	Packing	4/5 screens in 1 wooden case
Panel Specifications
LCD Technology			Original LG DID LCD
Active Screen Diagonal			49"
Panel Dimension(WxH)			1075.58*605.8mm
Total Bezel Width			1.8mm
Aspect Ratio			16:9
Physical Resolution			1920*1080
Backight System			WLED
Luminance(nits)			500cd/㎡
Contrast			1500:1 (typ.)
Viewing Angle			H 178°\|V 178°
Display Colors			8Bit,16.7M
Refresh Rate			60Hz
Response Time			<=6ms
Life(hrs)			>60,000(hrs)
MTBF			> 100,000 h
Surface			Anti-glare
Standby Power Consumption			<3W
Maximum Power Consumption			<=180W
Power Supply			AC100~240V 50/60 Hz
Cooling			Low noise fans
Working Time Capacity			7x24x365hours
Working Temperature			0℃～50℃
Working Humidity			0.85
Storage Temperature			-20-60°C \| -4-140°F
Storage Humidity			85% non-condensing
Net Weight			26kg/unit
1080P HDMI input daisy chain board Signal Inputs, Outputs
DP 4K loop in			1
DP 4K loop out			1
DVI-I DUAL LINK			1
HDMI input 2K			1
VGA input			1
RS232 IN			1
RS232 OUT			2
IR IN			1
AC IN			AC100-240V
Color System Support			PAL/NTSC/SECAM
Control Type			IR Remote &Software Control
Menu Language			English
Vertical/Horizontal Display			Support

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
