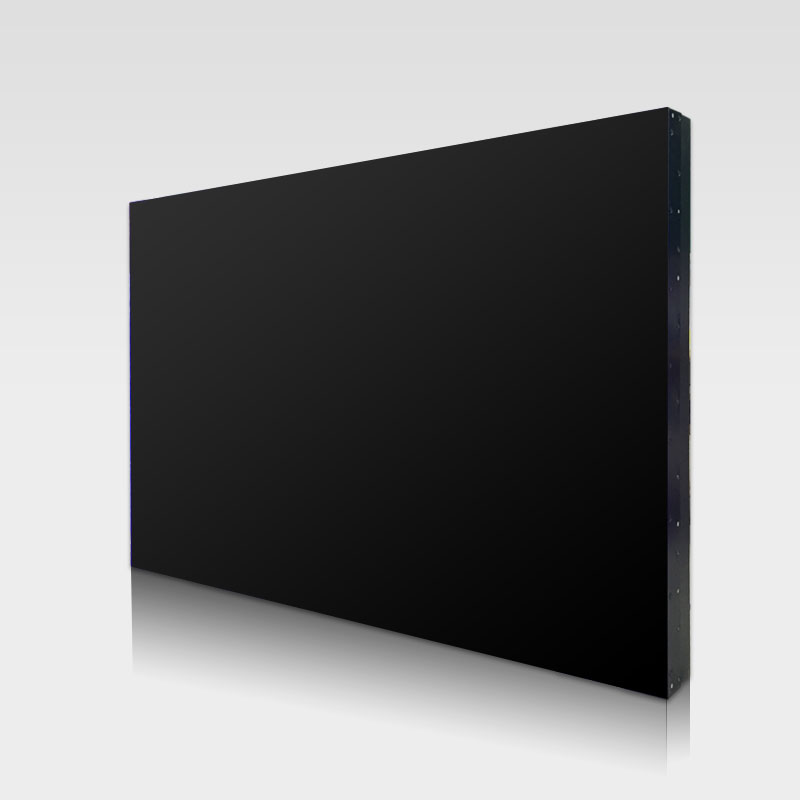

46 inch 3.5mm bezel LG Video Wall Screen

Register as member to view prices

MOQ: 2 Sets

Produce Period: 2-3 days

Supply Ability: 2000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price Terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWesternunion

INQUIRY PDF Format

Description

>>Product key features:
1, Ultra narrow frame design, the narrowest bezel is 0.88mm and the bezel can be optional.

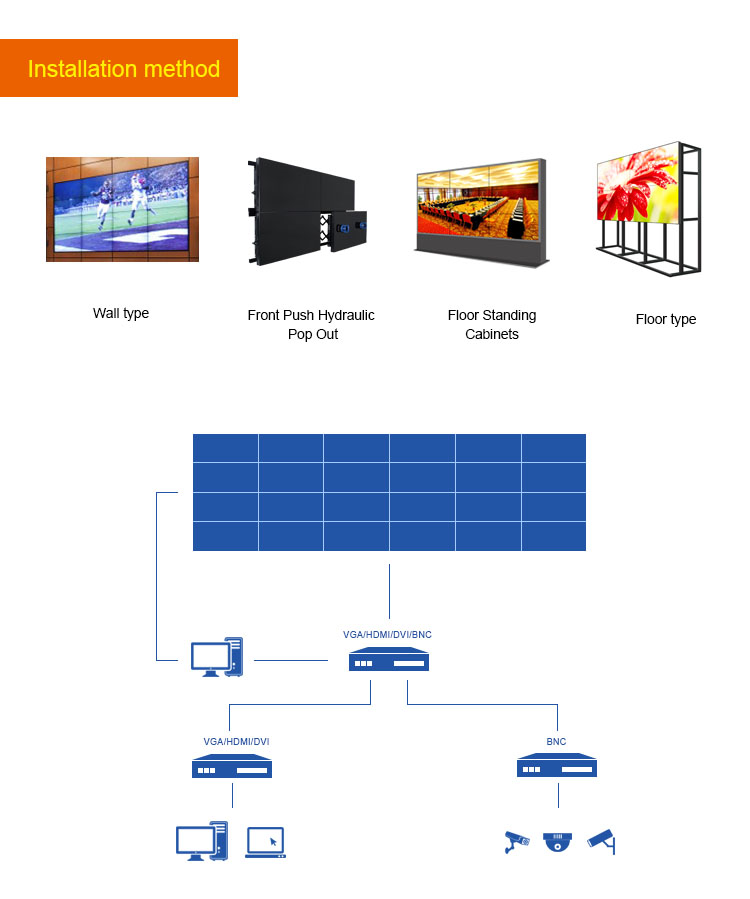

2, Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
3, The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interference;
4, Interfaces: 2xHDMI input,DP loop in,DP loop out,DVI input, VGA input,CVBS loop,USB,Switch, Power port;
5, Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
6, Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
7, Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
8, Video wall screen with 1080P HDMI input daisy chain controller board;
9, HDMI splitter to combine the screens to a big wall;
10, Quality SPCC video wall racks for 55” lcd videowall with complete accessories.

>>Technology Optional modules

Item No.	Components	Descriptions
1	55" LG 0.88mm bezel	500nits brightness,WLED Backlight,1920x1080 resolution,with 1080P HDMI input
2	System controller	1 in 16output HDMI splitter
3	Bracket	POP out bracket for 55" lcd video wall
4	Standard Accessories	English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
5	Packing	4/5 screens in 1 wooden case
Panel Specifications
LCD Technology			Original LG DID LCD
Active Screen Diagonal			46"
Panel Dimension(WxH)			1079.6*609.6mm
Total Bezel Width			3.5mm
Aspect Ratio			16:9
Physical Resolution			1920*1080
Backlight System			WLED
Luminance(nits)			500cd/㎡
Contrast			1500:1 (type.)
Viewing Angle			H 178°\|V 178°
Display Colors			8Bit,16.7M
Refresh Rate			60Hz
Response Time			<=6ms
Life(hrs)			>60,000(hrs)
MTBF			> 100,000 h
Surface			Anti-glare
Standby Power Consumption			<3W
Maximum Power Consumption			<=200W
Power Supply			AC100~240V 50/60 Hz
Cooling			Low noise fans
Working Time Capacity			7x24x365hours
Working Temperature			0℃～50℃
Working Humidity			0.85
Storage Temperature			-20-60°C \| -4-140°F
Storage Humidity			85% non-condensing
Net Weight			26kg/unit

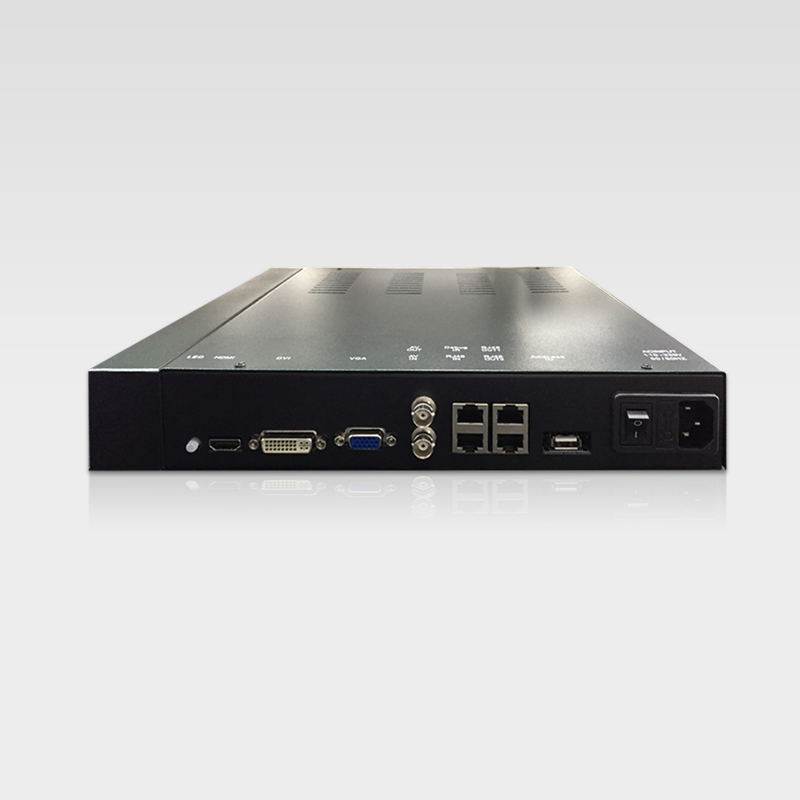

1080P HDMI input daisy chain board Signal Inputs, Outputs
DP 4K loop in			1
DP 4K loop out			1
DVI-I DUAL LINK			1
HDMI input 2K			1
VGA input			1
RS232 IN			1
RS232 OUT			2
IR IN			1
AC IN			AC100-240V
Color System Support			PAL/NTSC/SECAM
Control Type			IR Remote &Software Control
Menu Language			English
Vertical/Horizontal Display			Support

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
