ShenZhen Envision Display Technology Co., Ltd.

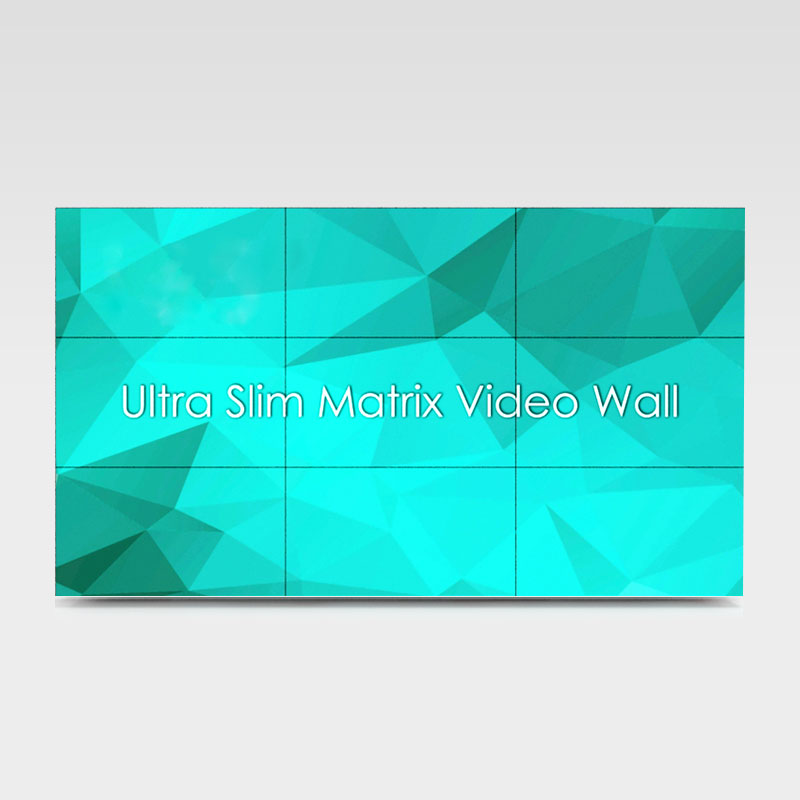

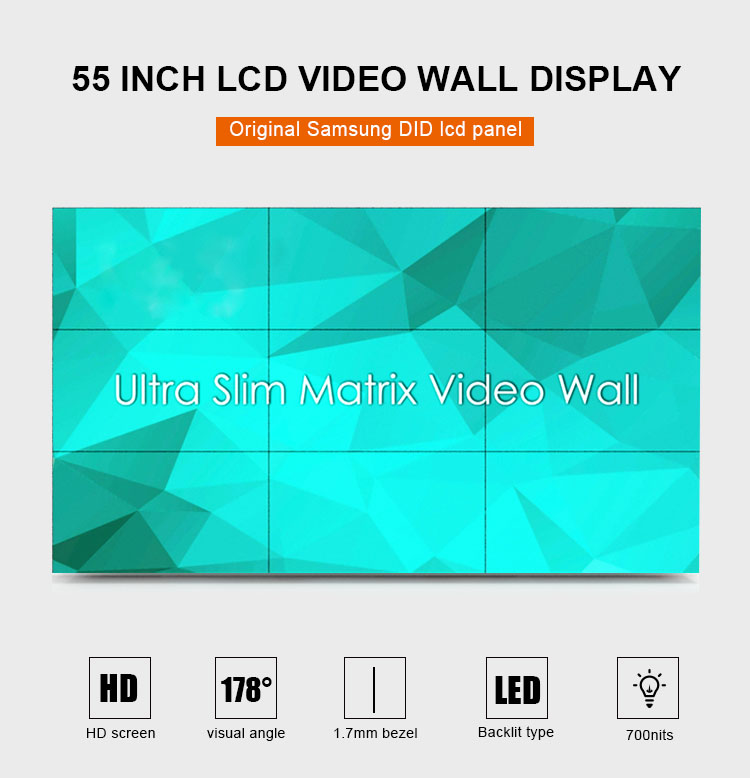

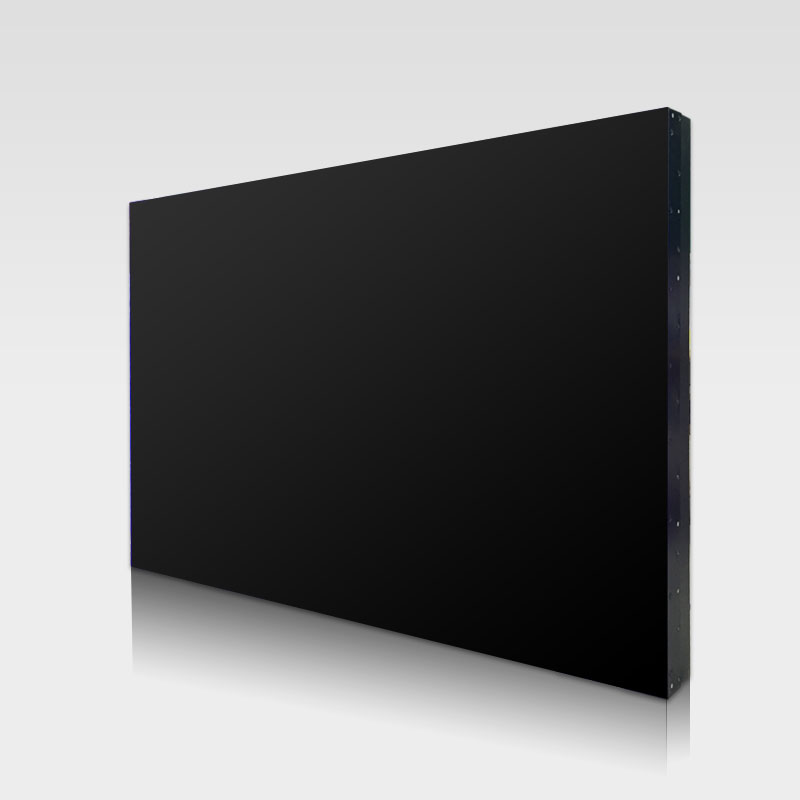

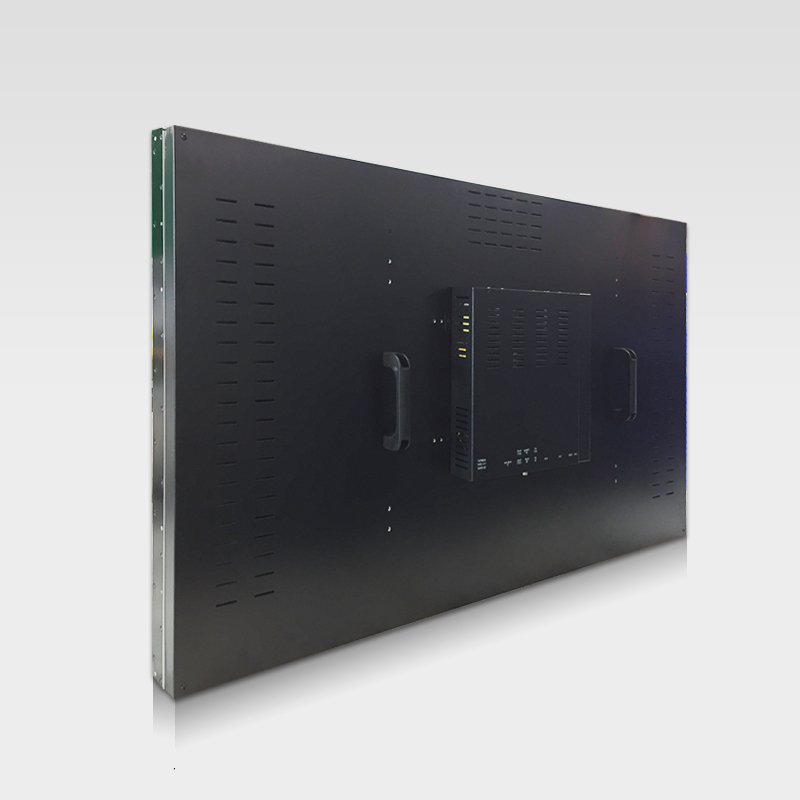

55 inch 1.7mm bezel Samsung Video Wall Screen

Register as member to view prices

MOQ: 2 Sets

Produce Period: 2-3 days

Supply Ability: 2000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price Terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWesternunion
Description



>>Product key features:
1, Panel size: 46″, 49″, 55″, 65″ optional;
2, Ultra narrow frame design, the narrowest bezel is 0.88mm and the bezel can be optional.

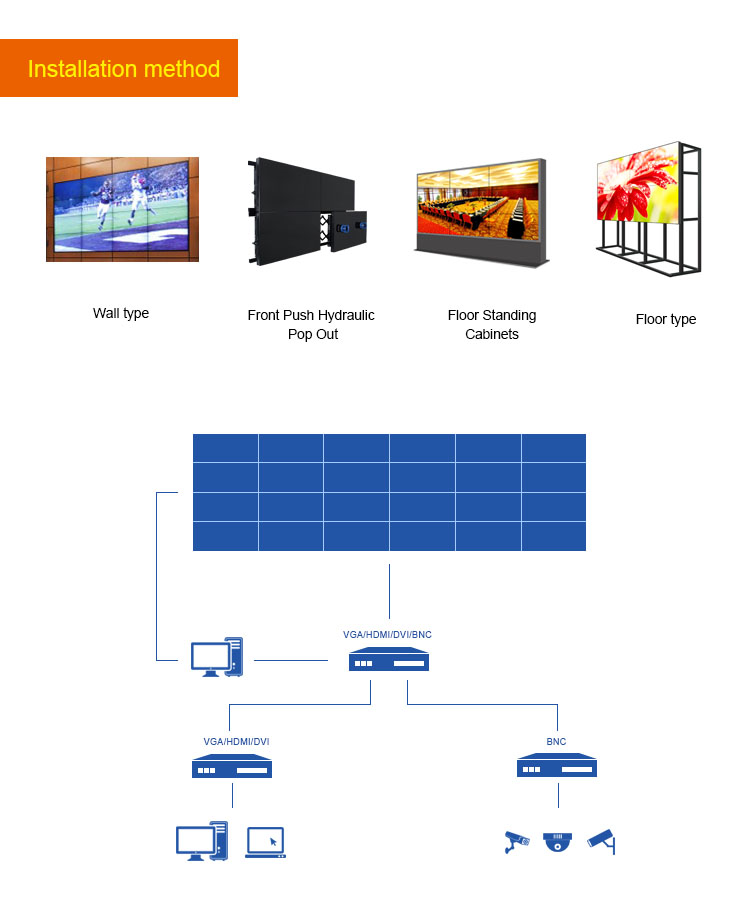

3, Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
4, The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interference;
5, Interfaces: 2xHDMI,DP loop, DVI , VGA ,CVBS ,USB , Switch, Power port;
6, Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
7, Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
8, Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
9, Video wall screen with 1080P HDMI input daisy chain controller board;
10, HDMI splitter to combine the screens to a big wall;
11, Quality SPCC video wall racks for 55” lcd videowall with complete accessories.





>>Technology Optional modules

 Item No.  Components Descriptions
1  55" Samsung 1.7mm bezel  500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input

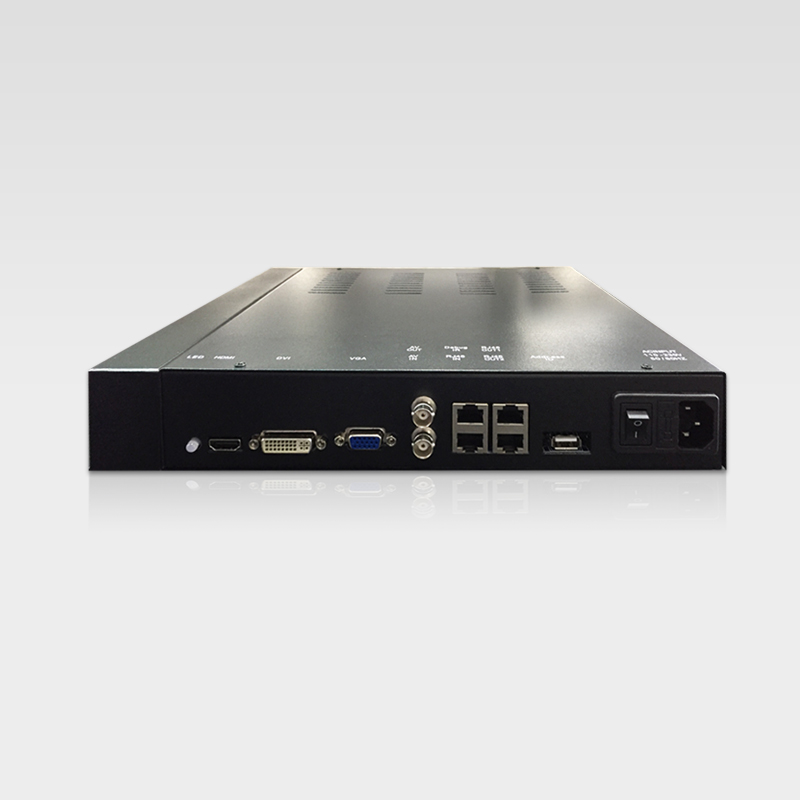

2 System controller 1 in 16output HDMI splitter
3 Bracket POP out bracket for 55" lcd video wall
4 Standard Accessories IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
5 Packing 4/5 screens in 1 wooden case
Panel Specifications
LCD Technology Original Samsung DID LCD
Active Screen Diagonal 55"
Panel Dimension(WxH) 1211.6*682.4mm
Total Bezel Width 1.7mm
Aspect Ratio 16:9
Physical Resolution 1920*1080
Backlight System WLED
Luminance(nits) 700cd/m2
Contrast 1500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=260W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Working Time Capacity 7x24x365hours
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Net Weight 26kg/unit
1080P HDMI input daisy chain board Signal Inputs, Outputs
DVI-I DUAL LINK 1
HDMI input 2K 1
VGA input 1
RS232 IN 1
RS232 OUT 2
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English
Vertical/Horizontal Display Support



*For more technical and commercial contact, welcome contact with our distributor or overseas sales

*All technical specification, designs and photos subject to change without notice







*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
