ShenZhen Envision Display Technology Co., Ltd.

55 inch 3.5mm bezel 700nits Samsung video wall

Register as member to view prices

MOQ: 2 Sets

Produce Period: 2-3 days

Supply Ability: 2000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price Terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWesternunion
Description





>>Product key features:
1, Panel size: 46″, 49″, 55″, 65″ optional;
2, Ultra narrow frame design, the narrowest bezel is 0.88mm and the bezel can be optional.

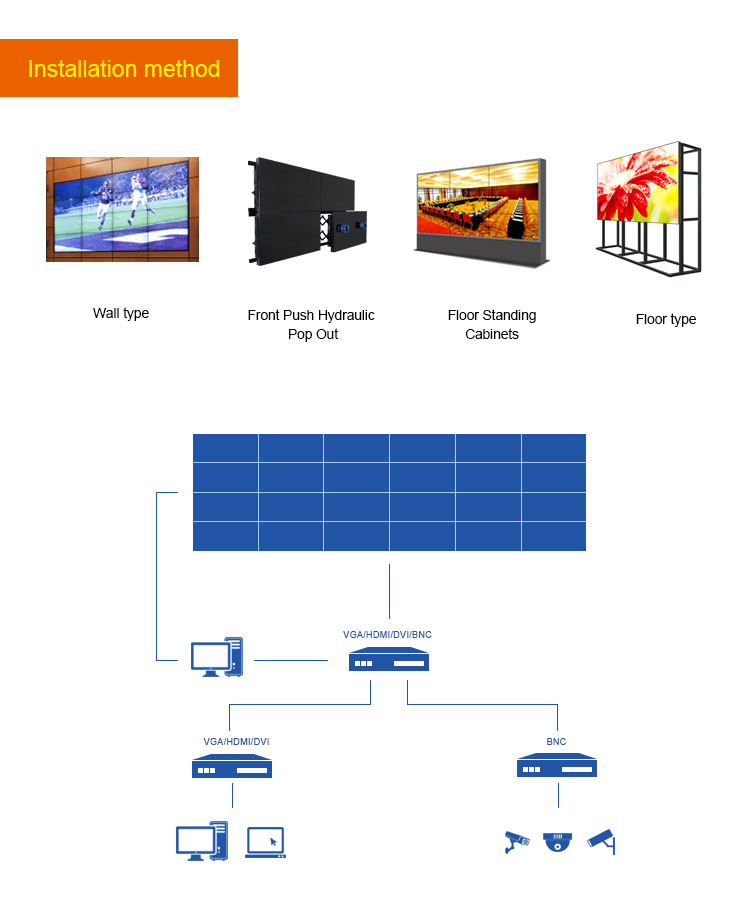

3, Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
4, The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interference;
5, Interfaces: 2xHDMI input,DP loop in,DP loop out,DVI input, VGA input,CVBS loop,USB,Switch, Power port;
6, Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
7, Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
8, Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
9, Video wall screen with 1080P HDMI input daisy chain controller board;
10, HDMI splitter to combine the screens to a big wall;
11, Quality SPCC video wall racks for 55” lcd videowall with complete accessories.

>>Technology Optional modules

 Item No.  Components Descriptions

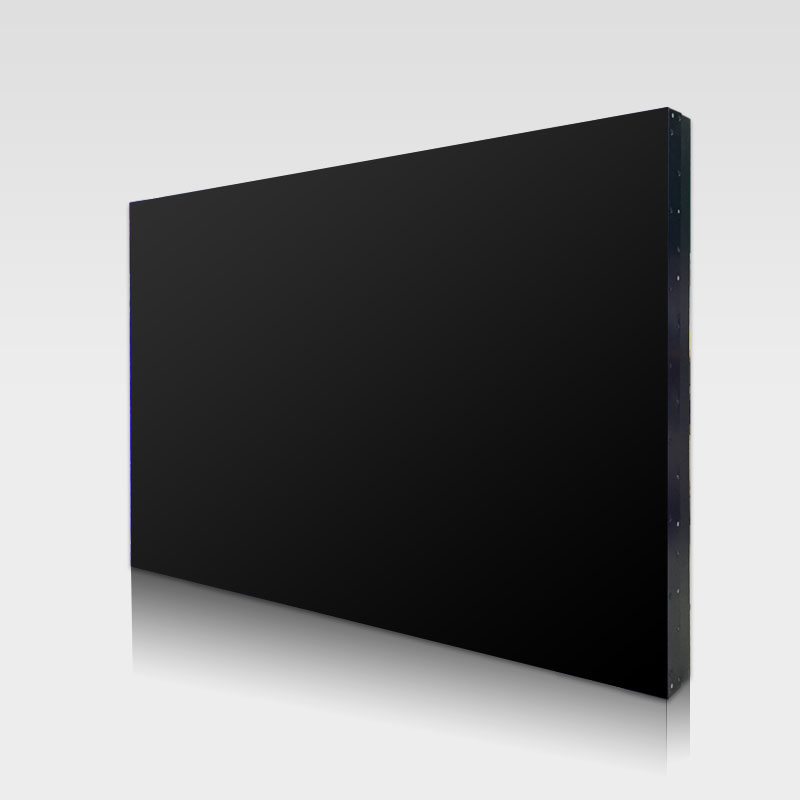

1  55" Samsung 3.5mm bezel  700nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input
2  System controller  1 in 16output HDMI splitter
3  Bracket  POP out bracket for 55" lcd video wall
4  Standard Accessories  English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
5  Packing  4/5 screens in 1 wooden case
Panel Specifications
 LCD Technology  Original Samsung DID LCD
 Active Screen Diagonal  55"
 Panel Dimension(WxH)  1213.5*684.3mm
 Total Bezel Width  3.5mm
 Aspect Ratio  16:9
 Physical Resolution  1920*1080
 Backlight System  WLED
 Luminance(nits)  700cd/㎡
 Contrast  1500:1 (typ.)
 Viewing Angle  H 178°|V 178°
 Display Colors  8Bit,16.7M
 Refresh Rate  60Hz
 Response Time  <=6ms
 Life(hrs)  >60,000(hrs)
 MTBF  > 100,000 h
 Surface  Anti-glare
 Standby Power Consumption  <3W
 Maximum Power Consumption  <=200W
 Power Supply  AC100~240V 50/60 Hz
 Cooling  Low noise fans
 Working Time Capacity  7x24x365hours
 Working Temperature  0℃~50℃
 Working Humidity  0.85
 Storage Temperature  -20-60°C | -4-140°F
 Storage Humidity  85% non-condensing
 Net Weight  26kg/unit

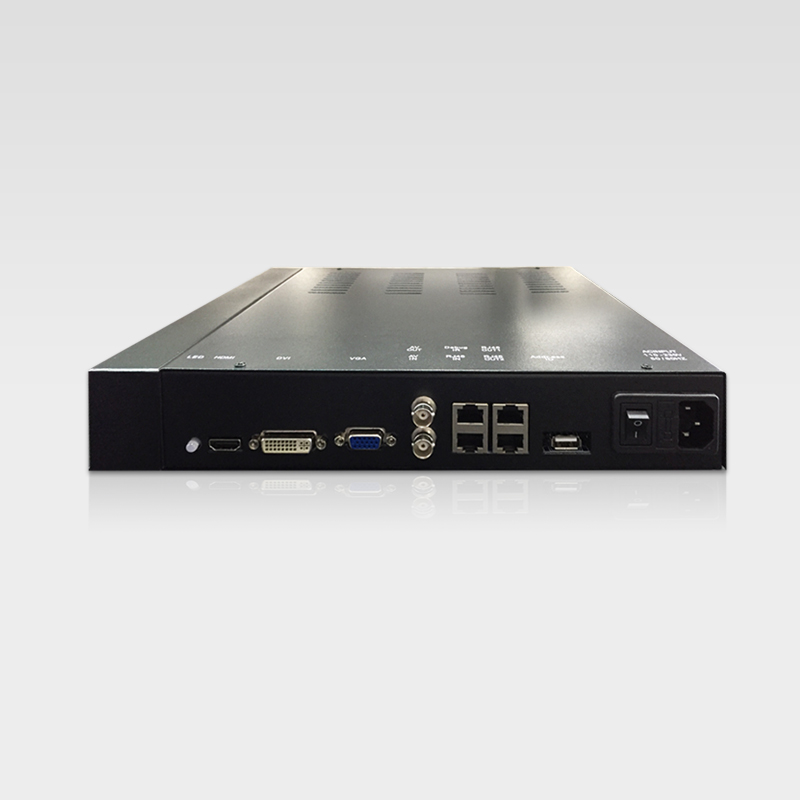

1080P HDMI input daisy chain board Signal Inputs, Outputs
 DP 4K loop in  1
 DP 4K loop out  1
 DVI-I DUAL LINK  1
 HDMI input 2K  1
 VGA input  1
 RS232 IN  1
 RS232 OUT   2
 IR IN  1
 AC IN  AC100-240V
 Color System Support  PAL/NTSC/SECAM
 Control Type  IR Remote &Software Control
 Menu Language  English
 Vertical/Horizontal Display  Support

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice





*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
