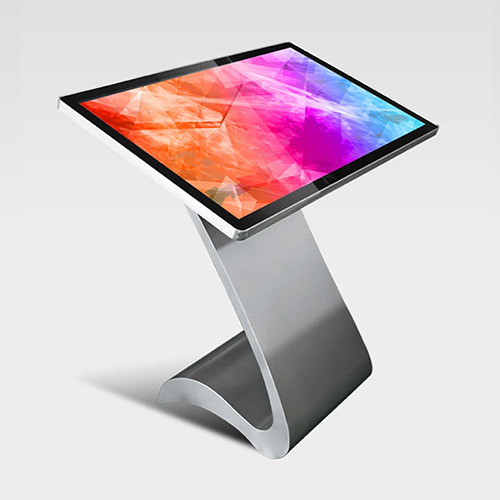

S Shape Touch Screen Kiosk

Register as member to view prices

MOQ: 5 Sets

Produce Period: 3-7 days

Supply Ability: 1000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union

INQUIRY PDF Format

Description

>>Product key features:

1, Different designed enclosures can be customized exactly according to client requirements;
2, Appearance shape, structure, size, configuration, and border color can be customized;
3, Right angle series and rounded series optional;
4, Installations: wall mounted and floor standing optional; This is the floor standing style;
5, Built-in high transparent tempered glass (2-6 mm ), perfectly integrated into all kinds of applications, as protection layer to prevent lcd/led panel being broken or distorted;
6, Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places;

>>Technology Optional modules

Panel,Player Specifications
Touch Function (optional)	Touchscreen	tempered glass
	Type	10 dots PCAP touch
	Touchscreen Resolution	4096×4096
	light transmittance	88% light transmittance
	Operating temperature	0°C ~ 50°C
	Life	5 years
Panel Specifications	Panel type	LG IPS LCD
	Physical Resolution	1920*1080
	Display Colors	16.7M
	Viewing Angle	H178º/ V178º
	Luminance(nits)	500cd/m2
	Contrast	MEGA DCR
	Backlit type	WLED
	Response time	6ms
	Life(hrs)	more than 60000
Connection	WIFI Module	YES
	RJ45	1
	USB	1(USB 2.0)
	HDMI	1
	VGA	1
Consumption	Power Supply	AC100~240V 50/60 Hz
	Max.Consumption	60-200W
	Standby Consumption	≤3W
Working function &Environment	Control Method	Wifi/RJ45 USB,CF,SD card Control,IR
	Color System Support	PAL/NTSC/SECAM
	OSD Language	English/Chinese(Multiple Language can be customized)
	Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolutions
	Video forma tsupport	MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
	Image format support	JPEG/BMP/TIFF/PNG/GIF
	Audio format support	Wave/MP3/WMA/AAC
	Splicing Display	Support
	Working Temperature	0℃-50℃
	Working Humidity	10%-85%
	Storage Temperature	0℃-50℃
	Storage Humidity	5%-95%
	Cooling	Low noise fans
Appearance	Application Condition	Indoor/Semi Outdoor
	Material	Cold-roll steel SPCC
	Frame Color	Black/White/Customization
	Mount/Installation type	Standing,iPhone seamless design
	DimensionPacking way	Full wood box pack
	Quality Standard	ISO9001,CCC,RoHS,FCC

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
