ShenZhen Envision Display Technology Co., Ltd.

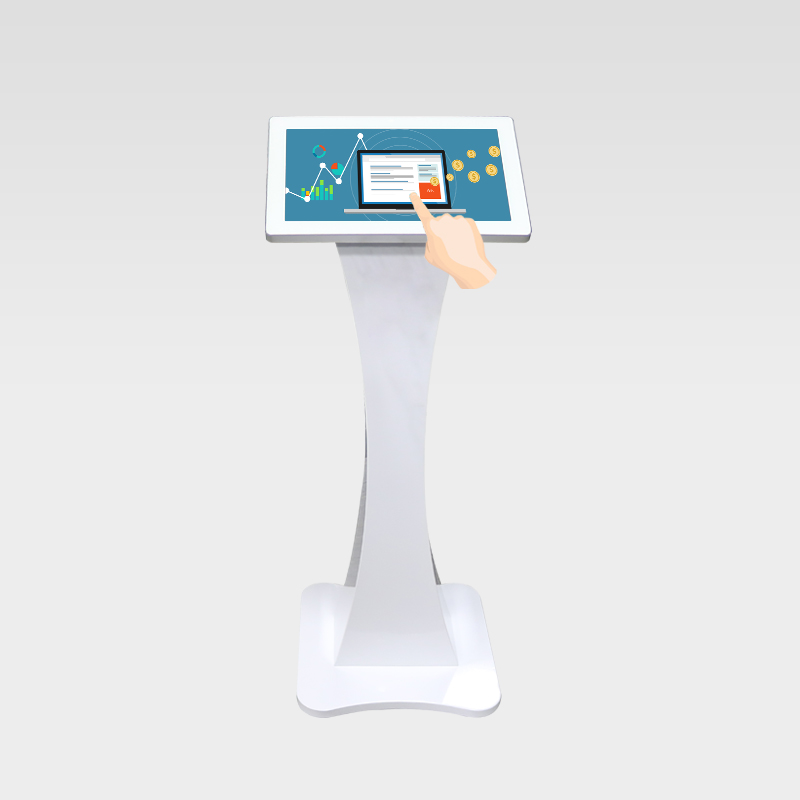

Small Touch Screen Self-service Kiosk

Register as member to view prices

MOQ: 5 Sets

Produce Period: 3-7 days

Supply Ability: 500 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union
Description

>>Product key features:
1, Different designed enclosures can be customized exactly according to client requirements;
2, Appearance shape, structure, size, configuration, and border color can be customized;
3, Right angle series and rounded series optional;
4, Installations: wall mounted and floor standing optional; This is the floor standing style;
5, Built-in high transparent tempered glass (2-6 mm ), perfectly integrated into all kinds of applications, as protection layer to prevent lcd/led panel being broken or distorted;
6, Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places;



>>Technology Optional modules

Panel,Player Specifications
Touch Function
(optional)
 Touchscreen  tempered glass
 Type  10 dots PCAP touch
 Touchscreen Resolution  4096×4096
 light transmittance  88% light transmittance
 Operating temperature  0°C ~ 50°C
 Life  5 years
Panel Specifications  Panel type  LG IPS LCD
 Physical Resolution  1920*1080
 Display Colors  16.7M
 Viewing Angle  H178º/ V178º
 Luminance(nits)  500cd/m2
 Contrast  MEGA DCR
 Backlit type  WLED
 Response time  6ms
 Life(hrs)  more than 60000
Connection  WIFI Module  YES
 RJ45  1
 USB  1(USB 2.0)
 HDMI  1
 VGA  1
 Consumption  Power Supply  AC100~240V 50/60 Hz
 Max.Consumption  60-200W
 Standby Consumption  ≤3W
 Working function &Environment  Control Method  Wifi/RJ45 USB,CF,SD card Control,IR
 Color System Support  PAL/NTSC/SECAM
OSD Language  English/Chinese(Multiple Language can be customized)
 Rich Resolution  Support 1080P,1080I,720P,480P &multiple resolutions
 Video forma tsupport  MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
 Image format support  JPEG/BMP/TIFF/PNG/GIF
 Audio format support  Wave/MP3/WMA/AAC
 Splicing Display  Support
 Working Temperature  0℃-50℃
 Working Humidity  10%-85%
 Storage Temperature  0℃-50℃
 Storage Humidity  5%-95%
 Cooling  Low noise fans
Appearance  Application Condition  Indoor/Semi Outdoor
 Material  Cold-roll steel SPCC
 Frame Color  Black/White/Customization
 Mount/Installation type  Standing,iPhone seamless design
 DimensionPacking way  Full wood box pack
 Quality Standard  ISO9001,CCC,RoHS,FCC

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
