LCD Advertising Player for Medical Advertising

Register as member to view prices

MOQ: 5 Sets

Produce Period: 3-7 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

>>Product key features:

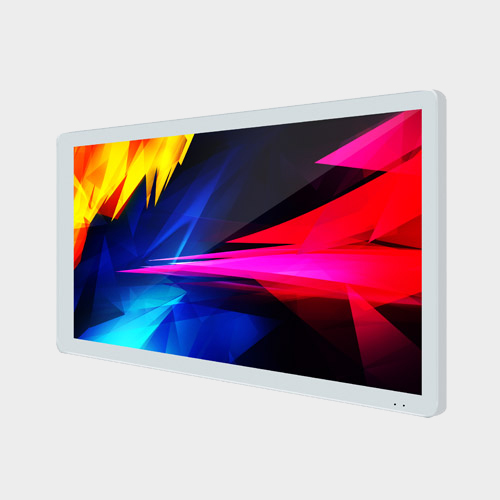

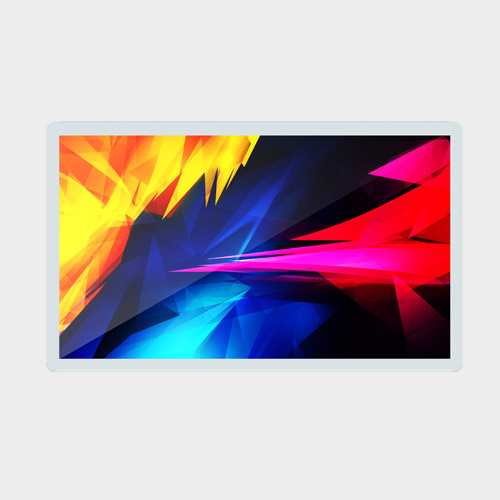

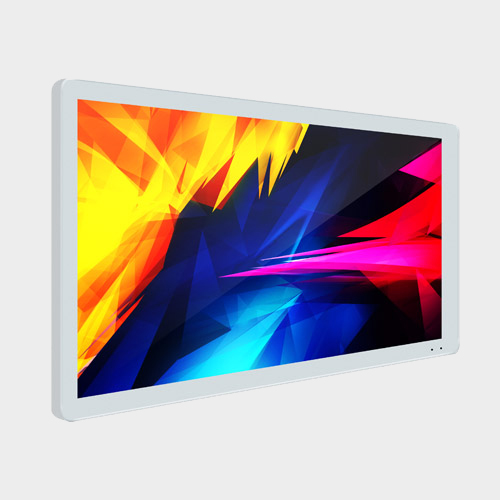

1, Wall mounted digital signage,Quality SPCC frame,Tempered glass,A+ Grade screen,1920*1080 resolution,500nits brightness,LED backlight, Android version,quad core; 8G,RJ45/WIFI/USB/HDMI/VGA, (PCAP touch);
2, Appearance shape, structure, size, configuration, and border color can be customized;

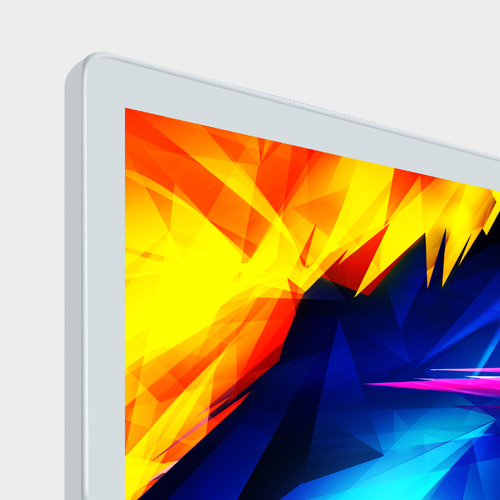

3, Right angle series and rounded series optional; This is rounded series;
4, Installations: wall mounted and floor standing optional; This is the wall mounted style;
5, Different designed enclosures can be customized exactly according to client requirements;
6, Built-in high transparent tempered glass (2-6 mm ), perfectly integrated into all kinds of applications, as protection layer to prevent lcd/led panel being broken or distorted;

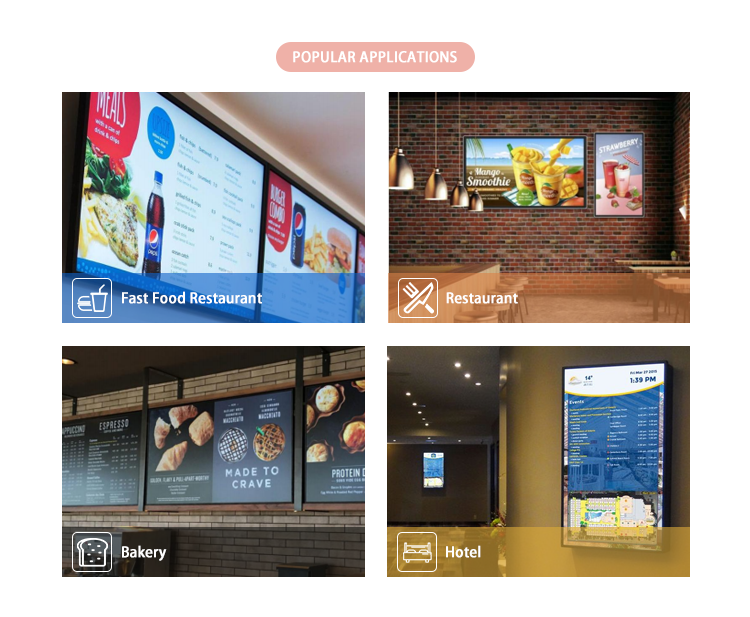

7, Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places.

>>Technology Optional modules

Panel	Panel type	21.5"	32"	43"	49"	55"	65"	75"	86"	98"
	Display size	476.64 *268.11mm	699*392.8mm	941.2 *529.4mm	1076 *607.5mm	1209 *680mm	1427.08 *805.32mm	1649 *927mm	1895 *1066mm	2159 *1214mm
	Appearance size	522.74 *314.2mm	758*451.8mm	1010.8 *599mm	1140.9 *617.9mm	1284.9 *755.9mm	1504 *882.24mm	1705.4 *985.6mm	1992 *1163mm	2284 *1320mm
	Diagonal Aspect Ratio	16:09	16:09	16:09	16:09	16:09	16:09	16:09	16:09	16:09
	Physical Resolution	1920 * 1080	1920 * 1080	1920 * 1080	1920 * 1080	1920 * 1080	1920 * 1080	1920 * 1080	1920 * 1080	1920 * 1080
	Display Colors	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	viewing Angle	H178°/v178°	H178°/v178°	H178°/v178°	H178°/v178°	H178°/v178°	H178°/v178°	H178°/v178°	H178°/v178°	H178°/v178°
	Luminance(nits)	450-1000cd/m²	450-1000cd/m²	450-1000cd/m²	450-1000cd/m²	450-1000cd/m²	450-1000cd/m²	450-1000cd/m²	450-1000cd/m²	450-1000cd/m²
	Contrast	MEGA DCR	MEGA DCR	MEGA DCR	MEGA DCR	MEGA DCR	MEGA DCR	MEGA DCR	MEGA DCR	MEGA DCR
	Backlit type	WLED	WLED	WLED	WLED	WLED	WLED	WLED	WLED	WLED
	Response time	6ms	6ms	6ms	6ms	6ms	6ms	6ms	6ms	6ms
	Life(hrs)	More Than 60000	More Than 60000	More Than 60000	More Than 60000	More Than 60000	More Than 60000	More Than 60000	More Than 60000	More Than 60000
Consumption	Power Supply	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ	AC100~250V 50/60 HZ
	Max.Consumption	100W	120W	140W	180W	200W	300W	450W	500W	600W
	Standby Consumption	≤3W	≤3W	≤3W	≤3W	≤3W	≤3W	≤3W	≤3W	≤3W

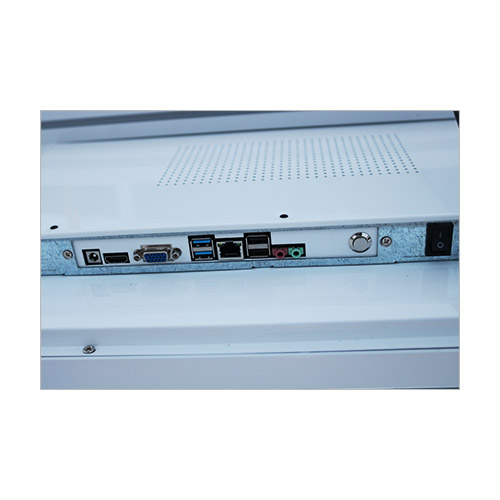

Output	VGA	1
Output	HDMI	1
Input & Storage	WIFi Module	YES
	RJ45	1
	USB	1(USB 2.0)
Appearance	Application Condition	lndoor/Semi Outdoor
	Material	Cold-roll steel SPCC
	Frame Color	Black/White/Customization
	Mount/lnstallation type	standing,iPhone seamless design
	DimensionPacking way	Full wood box pack
	Quality Standard	lSO9001,CCC,RoHS,FCC

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
