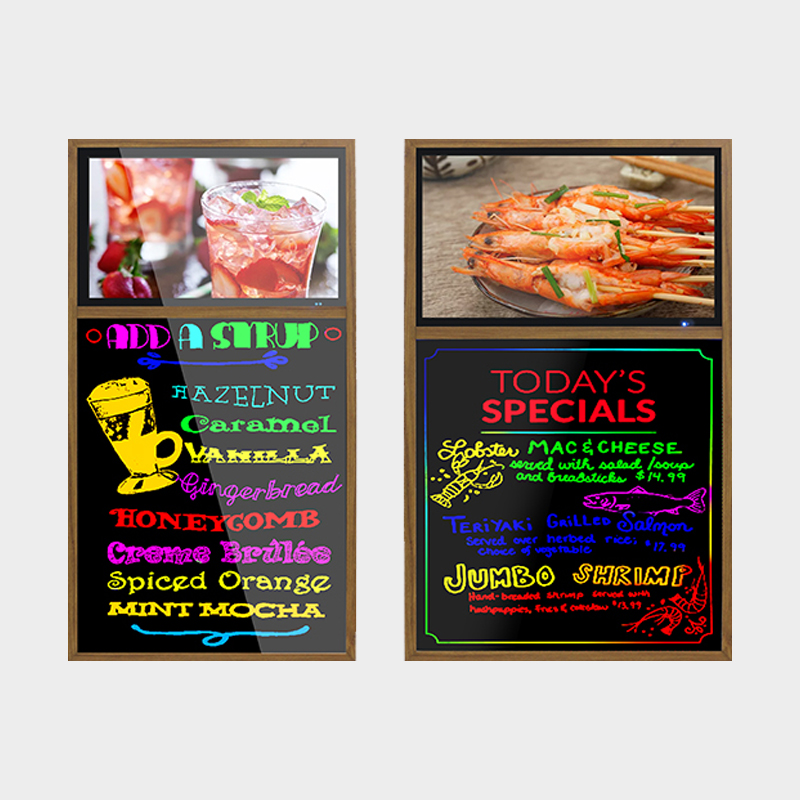

27” or 32” LCD screen with LED writing board
• Lightweight wooden grain /black aluminum frame
• Signway smart control system
• Support Wi-Fi / Ethernet web connection
• Fashionable outlook for Indoor use
| Model No. | Envision-AD2703WN | Envision-AD3203WN |
| DESCRIPTION | Wall-mounted LCD Signage with Writing-board | |
| Material / color (option) | Metal Frame; color option wooden or black | |
| Panel Type | 27” or 32" LCD ( option ) | |
| Active Area | 597.8mm (H) × 336.3mm (V) for 27” screen product | |
| (horizontal ×vertical)(mm) | 698.4mm (H) × 392.85mm (V) for 32” screen product | |
| Pixels H ⅹV | 1920 x1080 | |
| Contrast Ratio | 1200:1 (typical) | |
| Operating System | Android 7.1 or Android 5.1 (option) | |
| Software | Sign way | |
| Transmissions | USB; SD ; WIFI; Wire Network | |
| Video Types | AVI, MPEG4, WMV, MKV, FLV, MP4, MOV | |
| Audio Types | MP3、WMA、WAV、APE、FLAC、AAC | |
| Image Types | JPG, JPEG, BMP, PNG, GIF | |
| Internal Storage Capacity | 2G ROM / 8G or16G RAM | |
| USB/SD/Micro SC/HDMI | 2 x USB, 1 x SD, 1 x Micro SC, 1 x HDMI | |
| Input Voltage / Ampere | 100-240V AC(50/60Hz) / 0.47A | |
| Power Consumption | 67 W | |
| Work Temperature | 25℃ 20h ＞ per day | |
| Work Humidity | 10 ~ 90% | |
