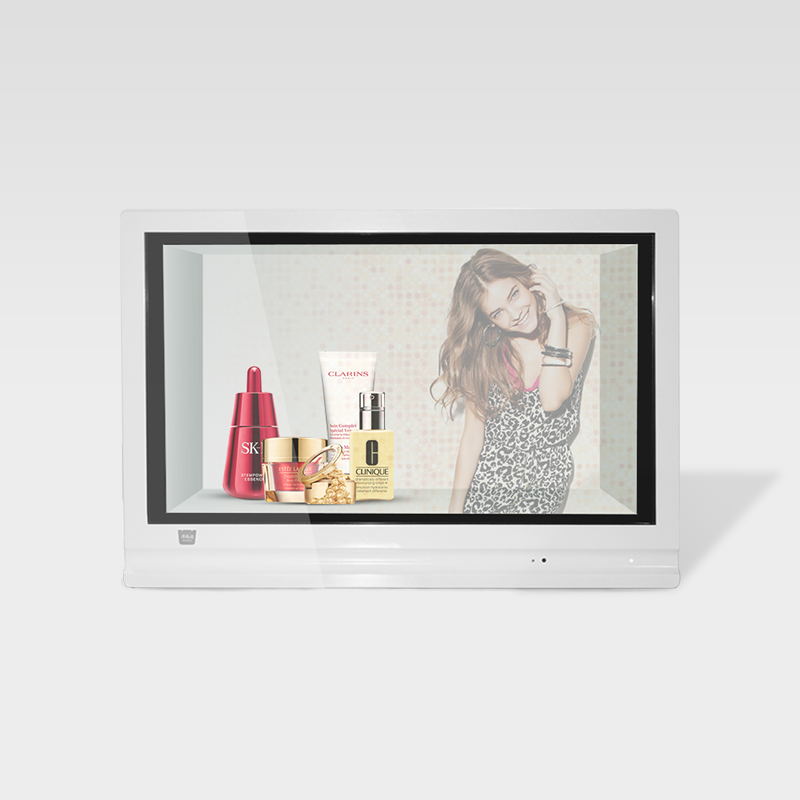

Transparent LCD Showcase

Register as member to view prices

MOQ: 5 Sets

Produce Period: 3-7 days

Supply Ability: 500 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union

INQUIRY PDF Format

Description

>>Product key features:
1, Can play pictures,music,videos,ads as needed;
2, With USB interface,can use CF memory card;
3, Interface optional, such as hdmi,vga input,SD slot,etc;
4, Different designed enclosures can be customized exactly according to client requirements.
5, Built-in high transparent tempered glass (2-6 mm ),perfectly integrated into all kinds of applications,as protection layer to prevent lcd/led panel being broken or distorted;
6, Applications:Shopping mall,exhibition halls, hotels, restaurant, chain stores,airport,information center,end user terminals and many other places.

>>Technology Optional modules

Solution	i3,4G RAM , 128G SSD
Panel Specifications	Panel type	IPS LCD
	Diagonal Aspect Ratio	16:9
	Display Colors	16.7M
	Physical Resolution	1920*1080
	disply area	700(H)×395(V) mm
	Backlit type	NO
	Viewing Angle	H178º/ V178º
	Luminance(nits)	300cd/m2
	Tansparency	75%
	Response time	10ms(GtoG),8ms(Gtog,WOT)
Interface	HDMI input	1
	VGA	1
	USB	2
	WIFI	1
Consumption	Power Supply	AC100~240V 50/60 Hz
	Max.Consumption	60-200W
	Standby Consumption	≤3W
Working function &Environment	Color System Support	PAL/NTSC/SECAM
	OSD Language	English
	Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolutions
	Video format support	MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
	Image format support	JPEG/BMP/TIFF/PNG/GIF
	Audio format support	Wave/MP3/WMA/AAC
	Splicing Display	Support
	Working Temperature	0℃-50℃
	Working Humidity	10%-85%
	Storage Temperature	0℃-50℃
	Storage Humidity	5%-95%
	Cooling	Low noise fans
	show case inside	need white LED lighting
Structure	Case Material	SPCC
	Case Color	White
	Show case Dimension	785520250
	Net Weight	20kg

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
