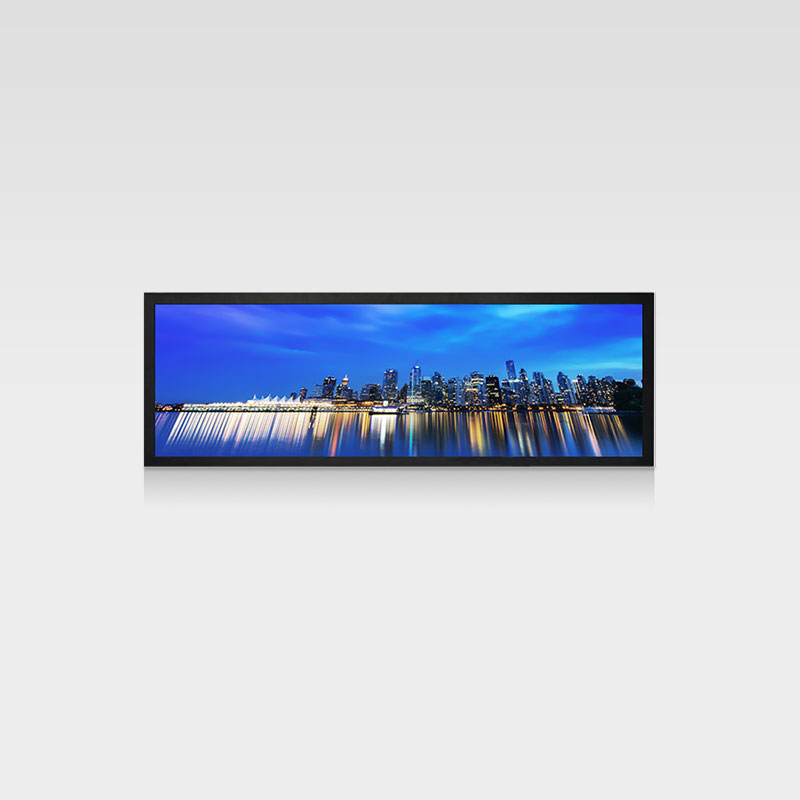

Ultra Stretched Bar LCD Display Screen

Register as member to view prices

MOQ: 5 Sets

Produce Period: 3-7 days

Supply Ability: 1000 Sets per Month

Nearest Port: ShenzhenGuangzhouHongkong

Price terms: EXWFOBCIFDDPDDU

Payment Terms: Bank T/T transferWestern Union

INQUIRY PDF Format

Description

>>Product key features:
1, Different designed enclosures can be customized exactly according to client requirements.
2, Size, configuration, and border color can be customized;
3, Right angle series and rounded series optional;
4, Adopting screen-by-picture technology;
5, Mounting direction, horizontal and vertical optional;
6, Publish multiple ads or videos at the same time;
7, Built-in high transparent tempered glass (2-6 mm ), perfectly integrated into all kinds of applications, as protection layer to prevent lcd/led panel being broken or distorted;
8, Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places;

>>Technology Optional modules

Panel Specifications	Panel type	TFT LCD
	Physical Resolution	1920*158
	disply area	585.6 (H) x 48.19 (V)
	Naked Panel Dimension	597.4(Length) * 60.4(Width)
	Viewing Angle	H178º/ V178º
	Luminance(nits)	500cd/m2
	Contrast	3000:1
	surface treatment	AG coating (Haze 40%)
	Response time	6ms
	Life(hrs)	more than 60000
Connection	CPU	ARM Cortex-A9 R4, 28nm
	RAM	1G
	RJ45	x1
	Storage	8G EMMC
	USB	x1
	OTG	x1
	WIFI	802.11a/b/g/n
	HDMI	NO
	TF Card	can support up to 128GB
	Power Supply	AC100~250V 50/60 HZ
	Function	including software to upload advertising contents,cloud control
Display	AVI,MOV, MKV, WEBM,MP4, M4V, FLV, 3GP, 3G2,3GPP, DAT,VOB, EVO,MPG, ASF, TP, TRP, TS, M2TS, MTS, H. 265（HEVC）1080P 30fps，H.264 （BP/MP/HP level 4.1，1920X1080@60fps）, H. 263（profile 3，1920X1080@60fps）, S263（profile 3，1920X1080@60fps）， MPEG-1（MP， 1920X1080@60fps）,MPEG-2（MP， 1920X1080@60fps ）, MPEG-4（ASP，1920X1080@60fps）, Xvid（Home theater 1920X1080@60fps）, MJPEG （baseline,1920X1080@60fps）, ON2 （1920X1080@60fps）， Divx（3.11,1280x720@60fps, support mulitple language display
Consumption	Power Supply	AC100~240V 50/60 Hz
Consumption	Max.Consumption	≤2.75W

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
