Floor Stand Stretched Shelf LCD Screen

Register as member to view prices

MOQ: 5 Sets

Produce Period: 3-7 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

>>Product key features:
1, Different designed enclosures can be customized exactly according to client requirements.
2, Size, configuration, and border color can be customized;
3, Right angle series and rounded series optional;
4, Adopting screen-by-picture technology;
5, Mounting direction, horizontal and vertical optional;
6, Publish multiple ads or videos at the same time;
7, Built-in high transparent tempered glass (2-6 mm ), perfectly integrated into all kinds of applications, as protection layer to prevent lcd/led panel being broken or distorted;

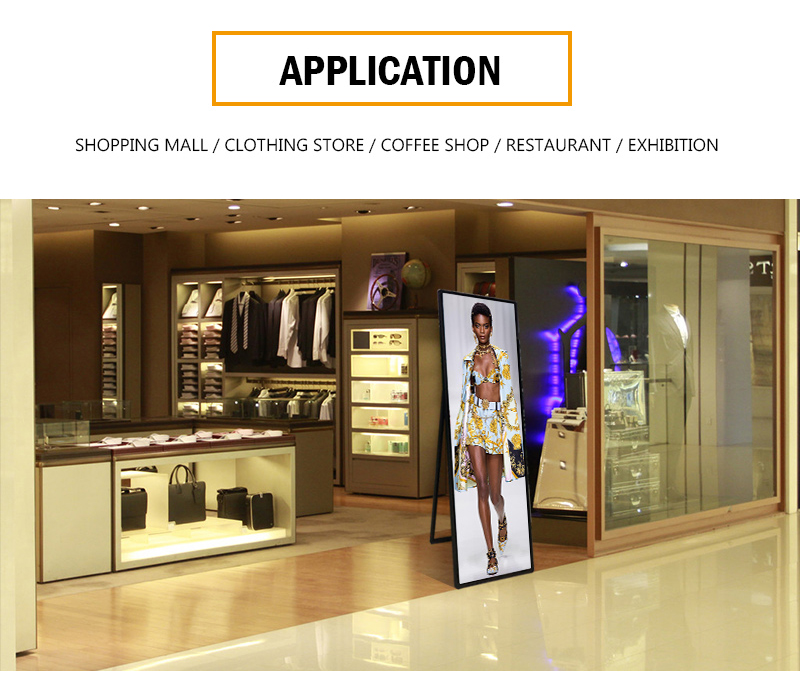

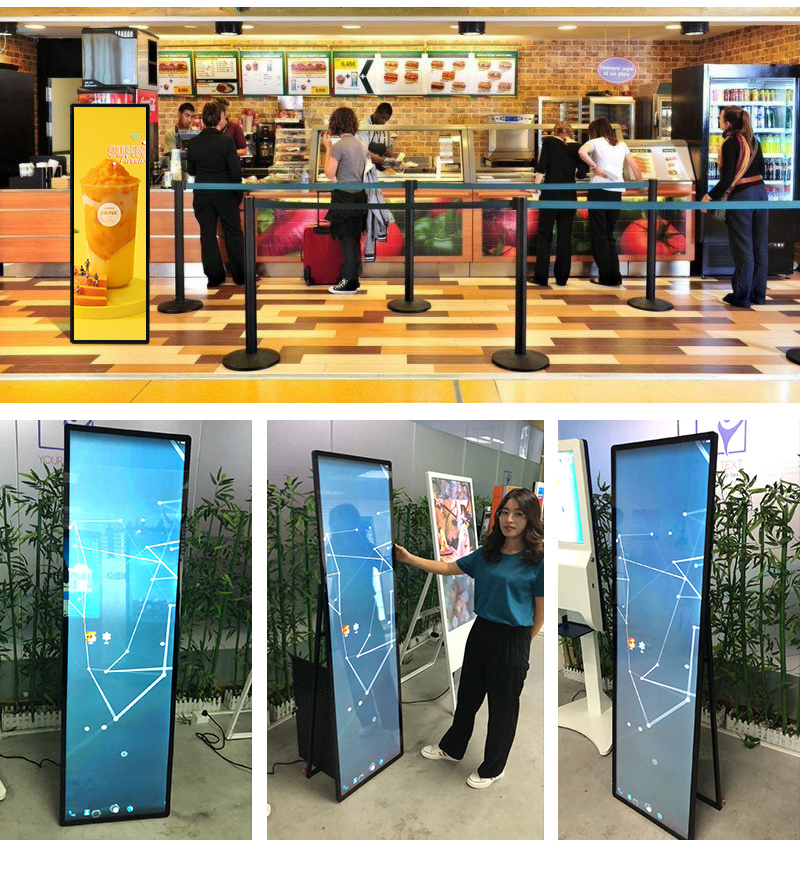

8, Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places;

>>Technology Optional modules

Panel Specifications	Panel size	68" TFT LCD
	Physical Resolution	1080*3840
	disply area	467×1650（H×V）mm
	Pixel Pitch	0.1625(H)*0.4875(V)
	Aspect Ratio	32：9
	Luminance(nits)	700/1100
	viewing angle	88/88/88/88 (Typ.)(CR≥10)
	Product Size	169451024mm
	Response time	6ms
	Life(hrs)	more than 60000
Connection	CPU	ARM Cortex-A9 R4, 28nm
	RAM	1G
	RJ45	x1
	Storage	8G EMMC
	USB	x1
	OTG	x1
	WIFI	802.11a/b/g/n
	HDMI	NO
	TF Card	can support up to 128GB
	Power Supply	220V (Typ.)
	Function	including software to upload advertising contents,cloud control
Display	AVI,MOV, MKV, WEBM,MP4, M4V, FLV, 3GP, 3G2,3GPP, DAT,VOB, EVO,MPG, ASF, TP, TRP, TS, M2TS, MTS, Video: Support WMV, AVI, RM, RMVB, FLV, MPEG, TS, etc., MP4. Image format supports BMP, PNG, GIF, JPEG Play mode supports multiple play modes such as loop, timer and insert
Consumption	Power Supply	AC100~240V 50/60 Hz
Consumption	Max.Consumption	≤2.75W

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
